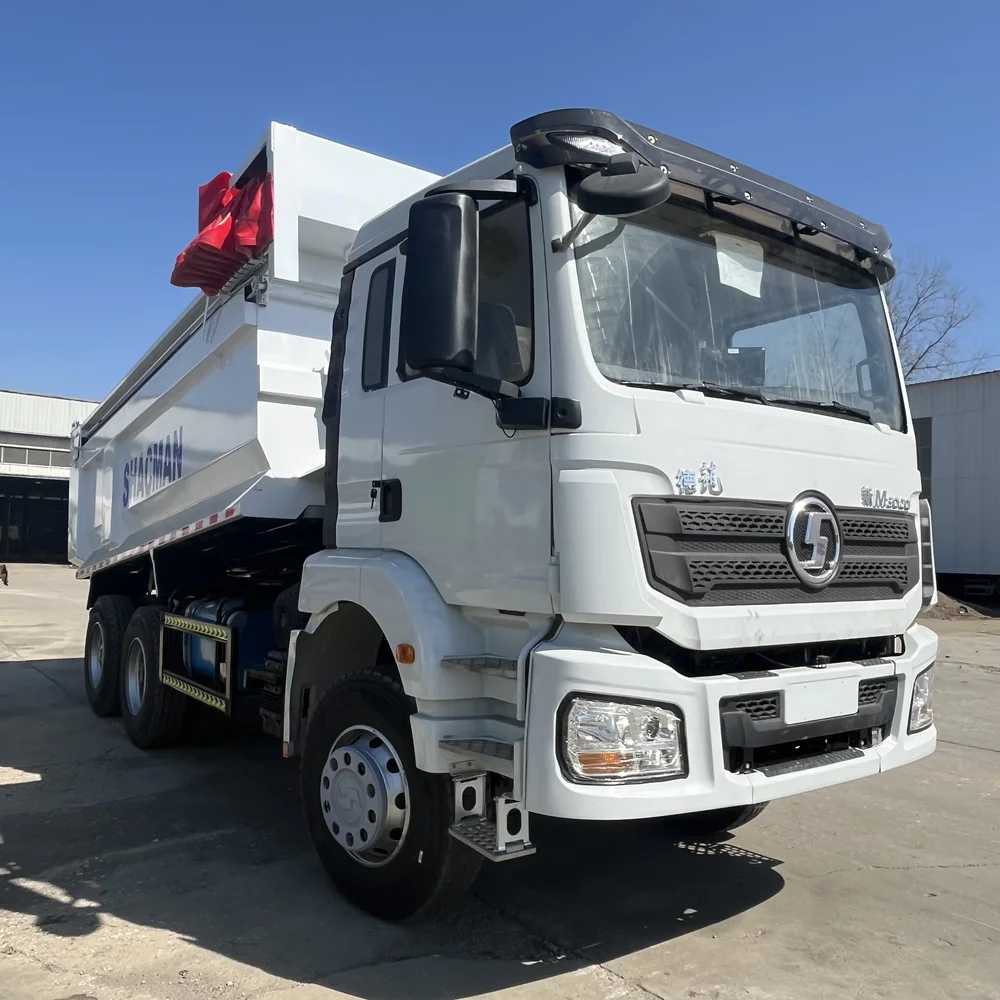

New Camion Shacman F2000 6x4 10 Wheeler Dump Tipper Truck
What Kind of Dump Truck Do We Have?
1. Truck chassis: SHACMAN (We can also supply Dongfeng, FAW, FOTON, ISUZU, SINOTRUK HOWO, JAC, etc. if you need.)
2. Driving type: 4x2, 6x4, 8x4.
3. Load capacity: Standard version (25-40t), composite version (40-60t), heavy version (60-80t), extra heavy version (>80t).
4. Application: Urban construction waste, road transportation, engineering mining, construction materials transportation.
5. Lifting method: Front lift (main method), side lift and center lift (a small number of tipper truck models). 6. Cargo Box Dimensions: Customization available based on client specifications or recommendations from our team.

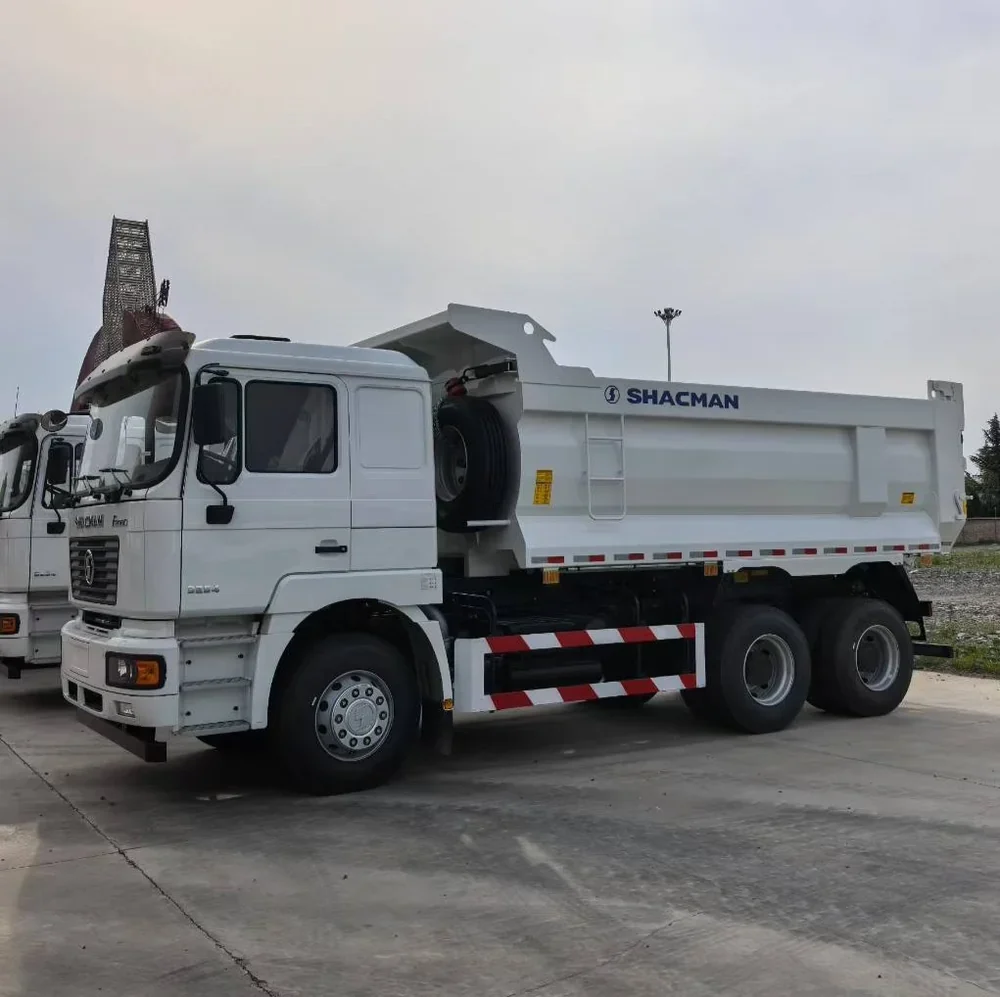

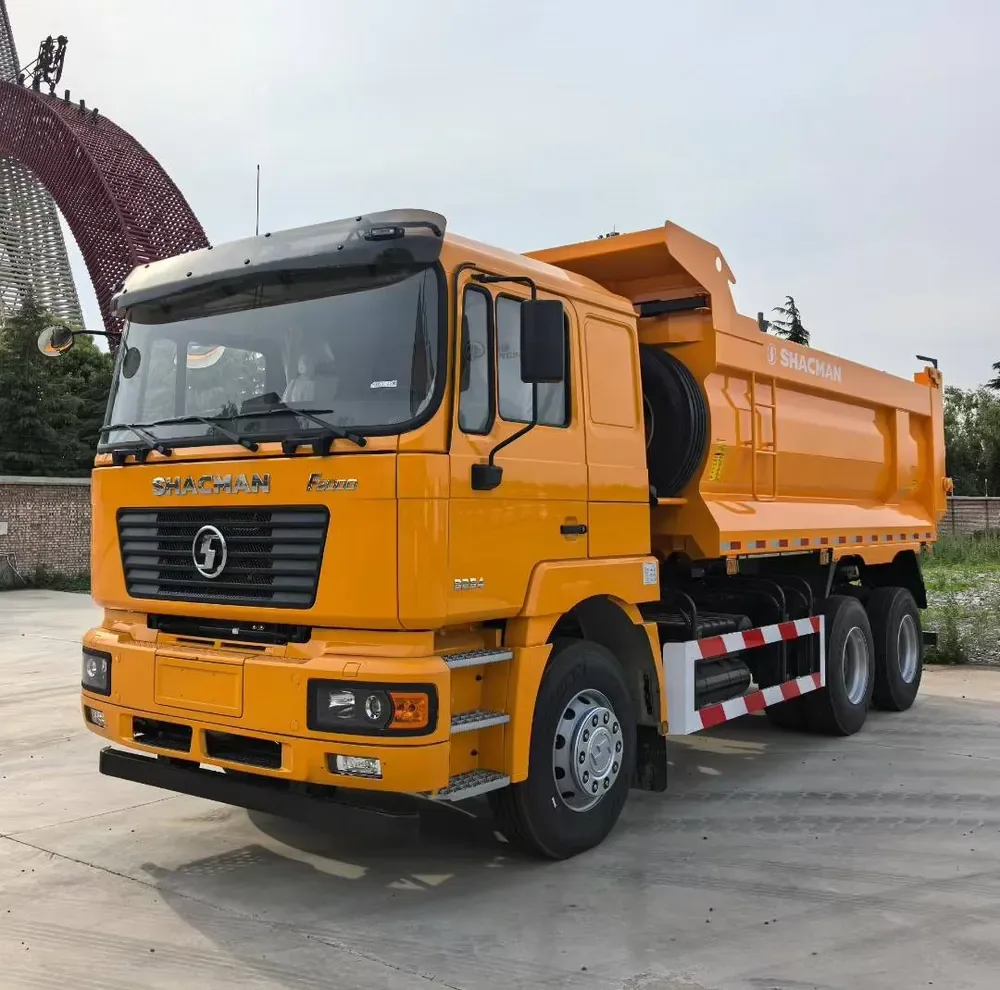

F2000 6×4 DUMP TRUCK SX3255JM384
|
Cab
| MAN F2000 Cab Single bed Air conditioner
|
Dimension(Lx W xH)(mm)
| 8450×2550×3450mm
|
Total mass(kg)
| 25000kg
|
Kerb mass(kg)
| 12330kg
|
Rated mass(kg)
| 12670kg
|
Approach / departure angel
| 16/66
|
Front/rear suspension(mm)
| 1525/1750
|
Max. gradeability (％)
| 28
|
Engine brand
| Wei-chai Engine
|
Engine model
| WP10.290E32，290hp
|
Rated output power
| 213kw
|
Torque(N.m r. p. m)
| 1160N.m/1200-1600rpm
|
Rated speed(rpm)
| 2200rpm
|
Emission Standard
| E-II
|
Displacement(L)
| 9.726L
|
Fuel type
| Diesel
|
Driving type
| 6×4
|
Axle number
| 3
|
Wheel base(mm)
| 3775+1400mm
|
Clutch
| φ430 diaphragm spring
|
Gearbox
| FAST 9JS135，9 Forward&1 Reverse，Manual
|
Front axle
| 7.5T HD 7500kg
|
Rear axle
| 16T STR 2×16000kg
|
Ratio
| 5.73
|
Steering
| ZF technology Left-hand drive(LHD)
|
Type
| 12R22.5,10+1pc
|
Tank capacity(L)
| 380L
|
Brake system
| ABS
|
Max. speed (km/h)
| 75km/h
|
Color
| optional
|
Cargo box size(mm)
| 5200×2300×1350mm bottom8mm,side6mm
|
Lifting style
| Middle lifting
|
I. Load-bearing capacity and structure: Reliable heavy-duty capability
With a total mass of 25 tons and a rated load of 12.67 tons, this vehicle features a 6×4 drivetrain (rear dual-bearing load), with each rear axle bearing weighing 16 tons (32 tons total for both axles). It boasts strong structural stability under heavy loads, making it suitable for transporting heavy materials such as sand, gravel, and slag.
The cargo box has a volume of approximately 16cbm, featuring an 8mm thickened bottom plate and 6mm thickened side plates for wear resistance and deformation resistance, making it suitable for loading rough materials. The middle lifting system provides excellent lifting stability and facilitates quick unloading.
II. Configuration and Practicality: Balancing Basic Comfort and Operational Efficiency

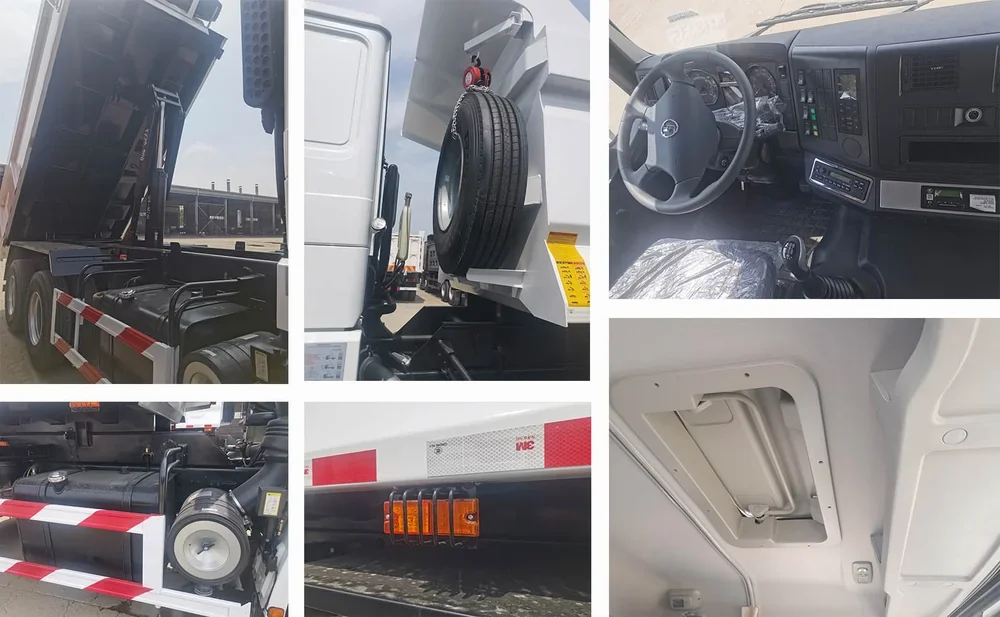

Basic Configuration: Practical configuration includes a MAN F2000 single-row cab with air conditioning, ensuring basic comfort for long-distance driving; a FAST 9-speed manual transmission (9 forward, 1 reverse) offers a variety of gears to adapt to power switching between heavy-load and unloaded conditions.
Detailed Features Adapting to Operational Needs: A large 380L fuel tank (strong range), ABS braking system (safer braking under heavy loads), and 12R22.5 tires (balancing load-bearing capacity and wear resistance). The overall configuration is designed around "efficient and stable operation," with no redundant functions, offering excellent value for money.
1) Waxing: We apply wax to the trucks to prevent corrosion from seawater during transportation.
(2) Transportation: We partner with reputable freight suppliers to provide reliable logistics services,
