Beiben NG80 6x4 Dump Truck

Uesd Beiben Dump Tipper Truck

BeiBen dump trucks are widely used in mines, infrastructure construction, urban engineering, water conservancy projects, ports and quarries. They are suitable for transporting sand, gravel, earth, ore, coal and other bulk materials, and perform well in complex road conditions such as mountainous areas, muddy roads and construction sites.

Send Inquiry 立即聊天

Chat Now

Product Details

Beiben NG80 6x4 380hp 10-Wheel Heavy Truck Diesel Fuel Weichai Engine Dump Tipper truck for Sale

Product display.jpg?x-oss-process=style/yasuo

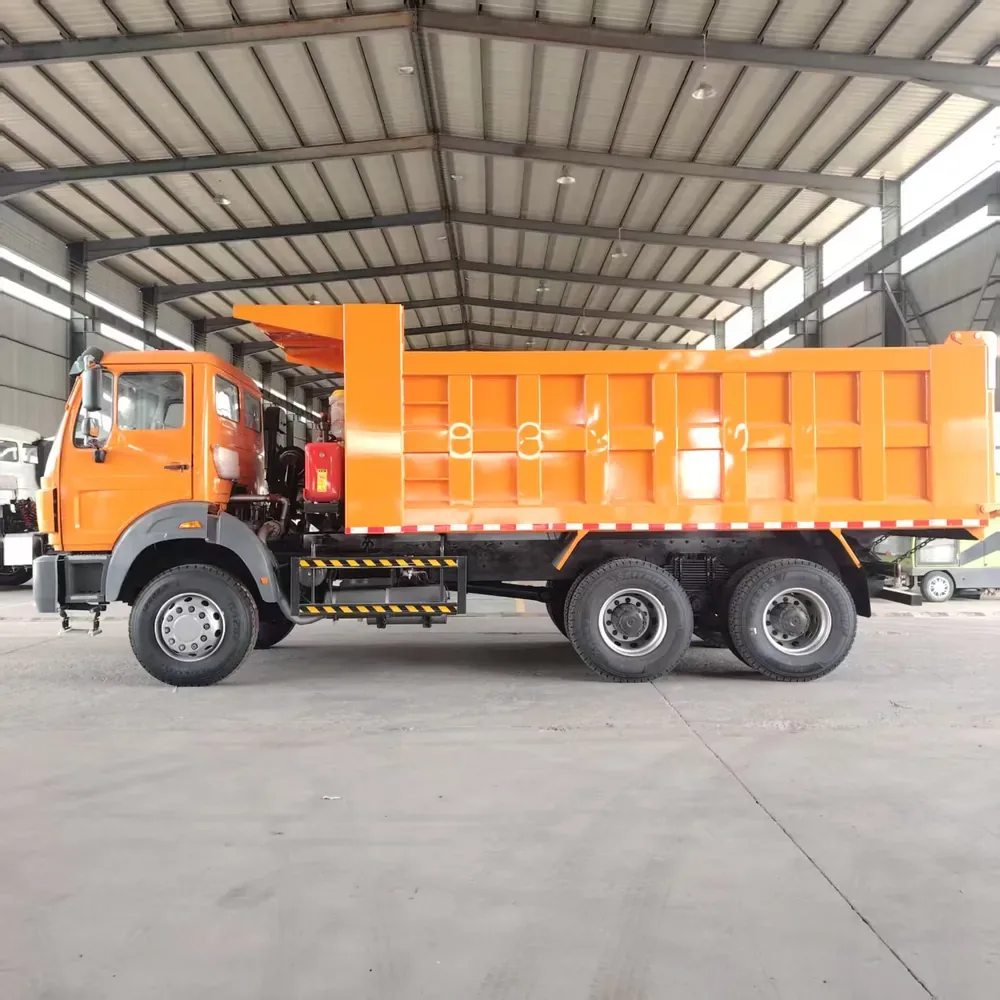

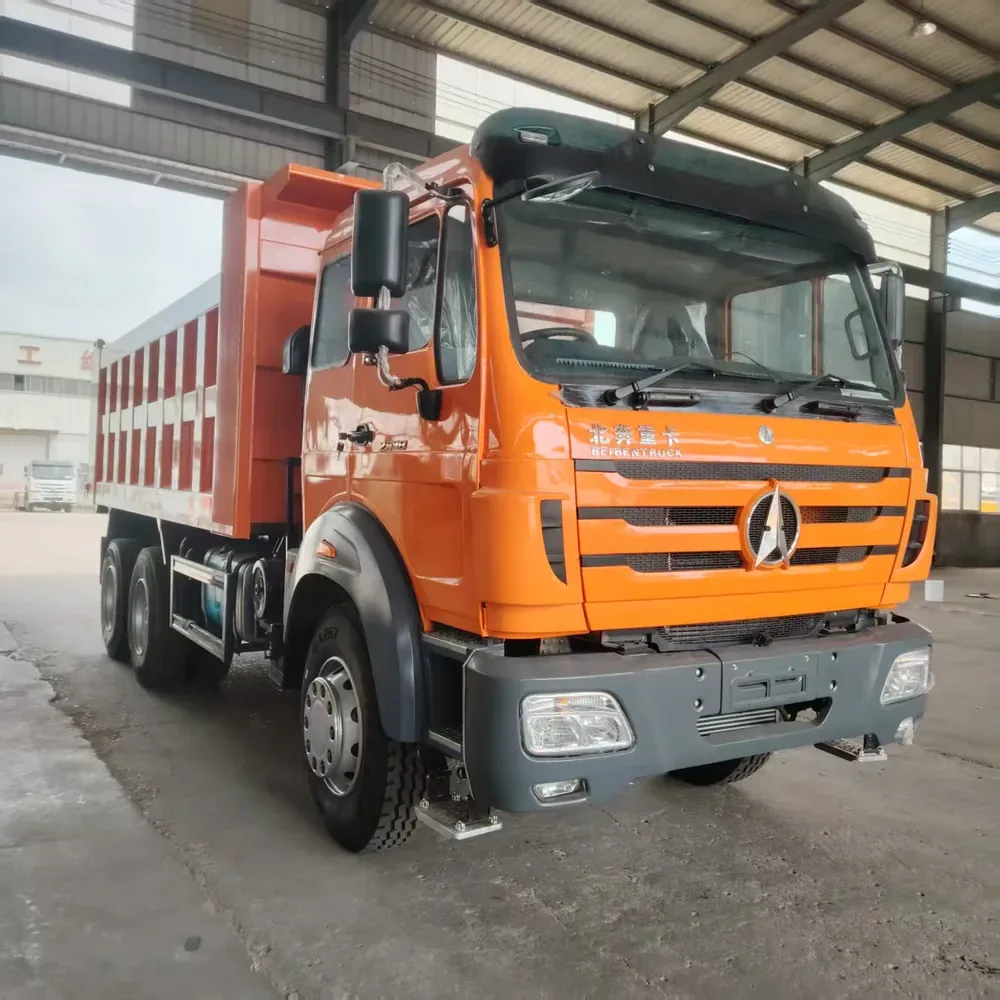

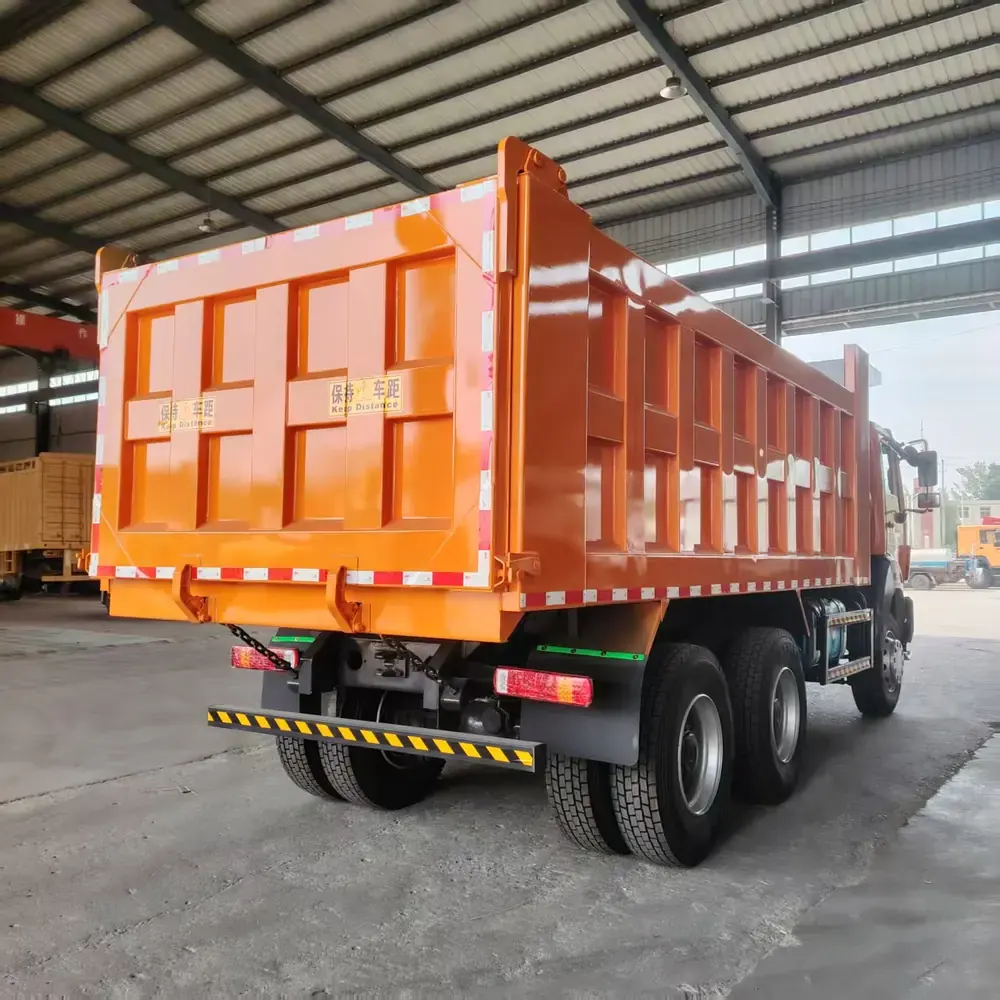

beiben dump truck (2).webp beiben dump truck (4).webp beiben dump truck (6).webp

BeiBen (North Benz) is a renowned brand of heavy-duty trucks manufactured by Baotou BeiBen Heavy-Duty Truck Co., Ltd. (BeiBen Trucks Group Co., Ltd.), a subsidiary of NORINCO (North Industries Group Corporation). Founded in 1988 in Baotou, Inner Mongolia, the company was established through a technology transfer agreement with Daimler-Benz, integrating German heavy-duty vehicle technology with Chinese manufacturing prowess.

BeiBen dump trucks, also known as tipper trucks, are high-performance heavy-duty vehicles independently developed and produced by Baotou BeiBen Heavy-Duty Truck Co., Ltd. With military-grade manufacturing standards and Mercedes-Benz derived technology, they are widely recognized for their strong load capacity, high reliability, and excellent adaptability to harsh working conditions.

Product parameters.jpg?x-oss-process=style/yasuo

SPECIFICATION
Approaching angle/Departure angle			26/30°
Wheel base			3800+1450mm
Slope climbing capability			Max.40%
Engine		Model	WP10.380E32,water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection
		Displacement	9.726L/Diesel
		Stroke	126/130mm
		Max. power	280/2200 (kw/rpm)
		Max.torque	1460/1200-1600(Nm/rpm)
		Emission stantard	EuroIII
Fuel tanker capacity			400L
Clutch			430, Single dry frictional disc,Hydraulic boosting
Gearbox			9JS150A, mechanism,9 forward gears,1 reverse gear, manual operated
Suspension system		Front	Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs
		Rear	Non-free standing stablization spring, balance suspension system, 13pcs
Brake system	Service brake		Brake gap can be adjusted automatically, double circulation air brake system
	Assistant brake		Engine exhaust brake
	Park brake		Potential springs pressing on middle and rear wheels
Steering system			ZF8098,whole circulation in ball, hydraulic booster
Frame			Fish belly shape, variable width, variable sections
Transfer case			LF200
Front axle (Mercedes Technology)			Double-shoe pneumatic brake, driving steering axle
Middle and Rear axle (Mercedes Technology)			Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle; ratio 5.921
Tyre			12.00R24 Off-road style
Electrical system	Battery		2X12V/135Ah
	Generator		28V-35A
	Starter		5.4Kw/24V
Cabin			NG80B short cabin ; Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back with arm seat for driver, high back seat for co-driver; With inner A/C Air Filter for Desert

Product Details.jpg?x-oss-process=style/yasuo

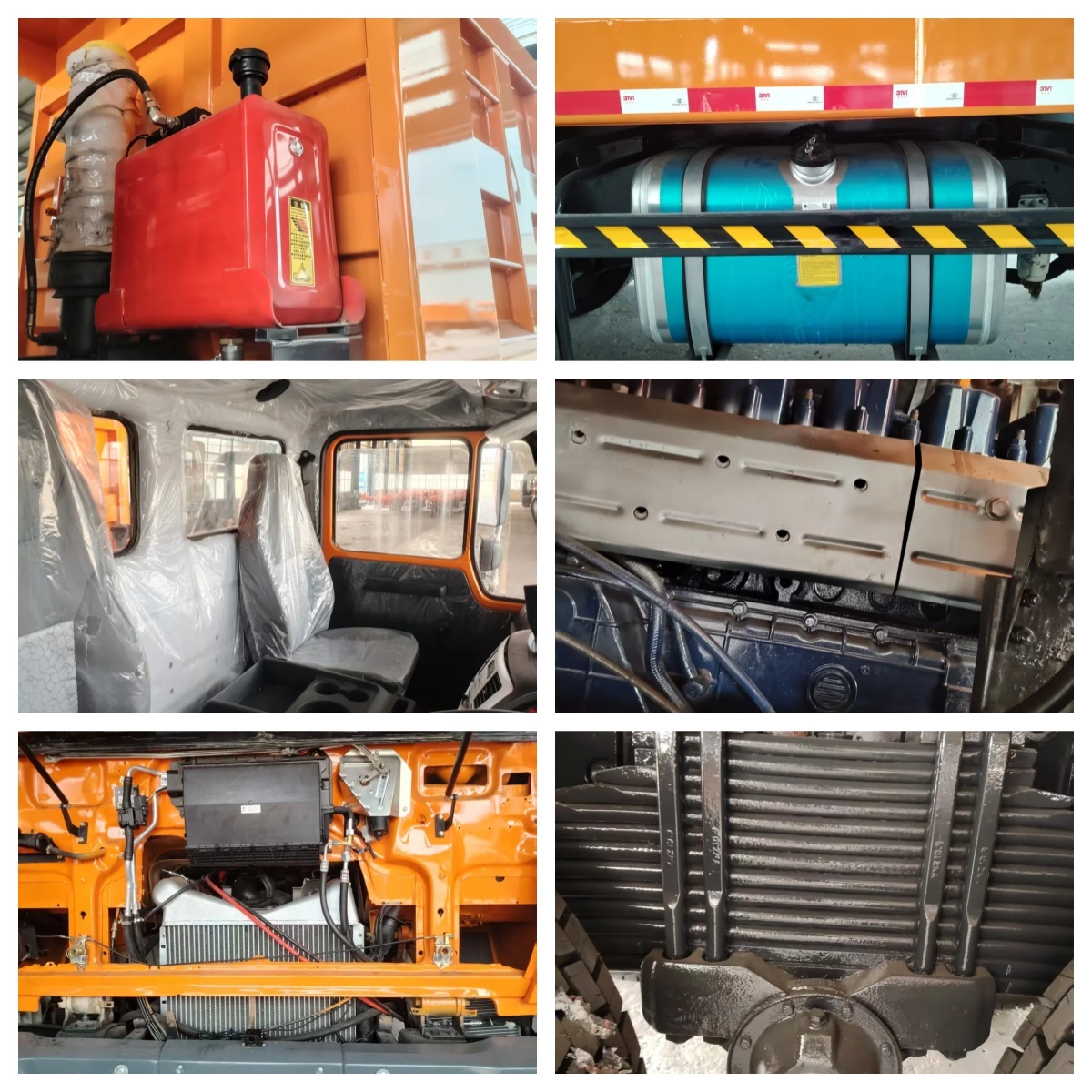

beiben detail.jpg

Refurbishment Standards for Used Dump Trucks（Concise Version）

1. Exterior & Body

Full vehicle deep cleaning, dirt, rust and oil stain removal.

Straighten deformed body, frame and cargo box; repair welding defects.

Rust treatment, anti-rust coating and overall repainting.

Replace damaged exterior covers, guards and sealing parts.

2. Steering & Braking System

Overhaul service brake and parking brake.

Replace brake consumables; ensure no air leakage in air circuit.

Steering system inspected, flexible and gap-free operation.

3. Electric System & Cab

Inspect and renovate aging wiring harness.

Restore lights, instruments and all electrical accessories.

Cab interior cleaning and partial renovation.

Guarantee complete functions of electric equipment.

transportation.jpg?x-oss-process=style/yasuo

运输.jpg?x-oss-process=style/yasuo We have been engaged in foreign trade for more than ten years, and have very rich experience in sea transportation. According to past cases, each of our goods is intact and delivered to customers on schedule.
