beiben NG80 6x4 6x6 Trailer Head Tractor Truck

Camion Beiben Tractor Truck

A tractor used for hauling and pushing heavy trailers. It is equipped with a high-power diesel engine, and equipped with a high speed ratio of mechanical or hydraulic transmission and main reducer. Some also have wheel-side deceleration devices to reduce speed and increase traction.

Send Inquiry 立即聊天

Chat Now

Product Details

china camion beiben Brand New NG80 6x4 6x6 Trailer Head Tractor Truck

Product display.jpg?x-oss-process=style/yasuo

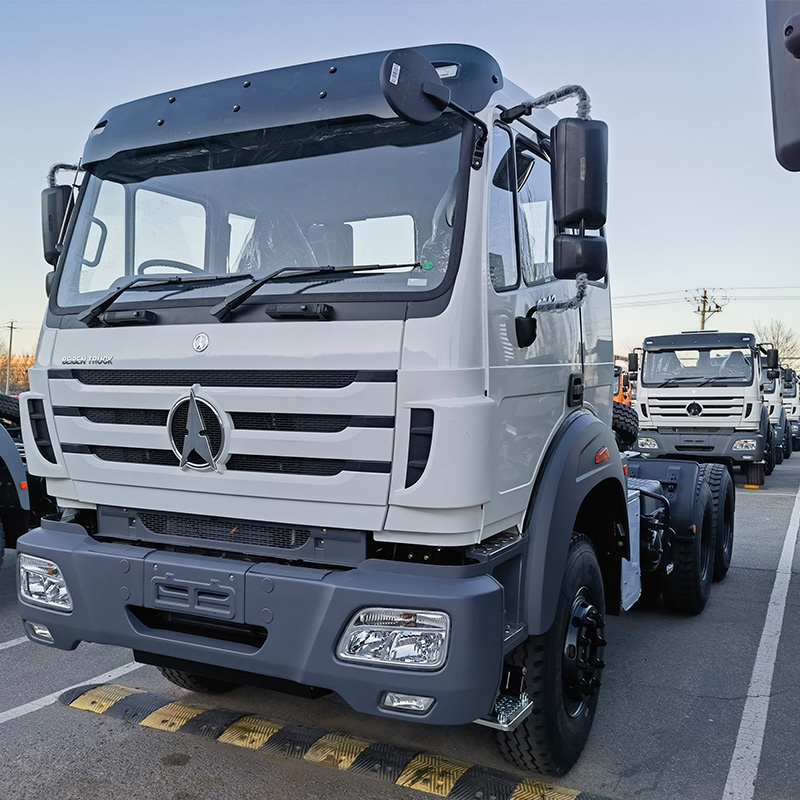

beibei truck head.jpg

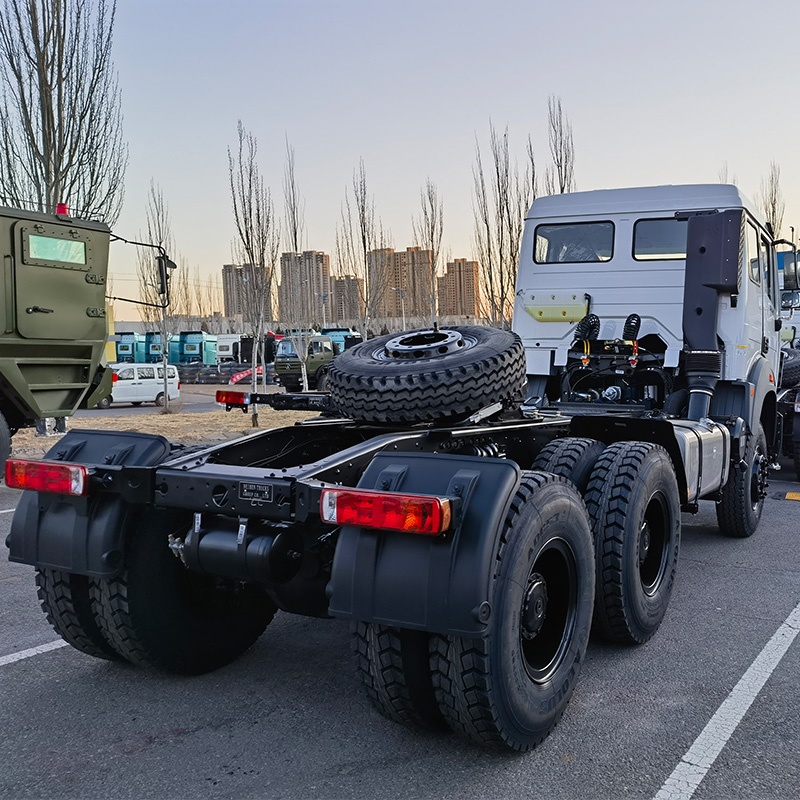

truck head.jpg

BeiBen (North Benz) is a renowned brand of heavy-duty trucks manufactured by Baotou BeiBen Heavy-Duty Truck Co., Ltd. (BeiBen Trucks Group Co., Ltd.), a subsidiary of NORINCO (North Industries Group Corporation). Founded in 1988 in Baotou, Inner Mongolia, the company was established through a technology transfer agreement with Daimler-Benz, integrating German heavy-duty vehicle technology with Chinese manufacturing prowess.

NG80 Series (Classic Heavy-Duty Tractor) Heritage: The original model line, directly derived from Mercedes-Benz technology. Robustness: Built with a double-layer reinforced frame and heavy-duty Mercedes-Benz-style axles, designed for extreme loads and off-road conditions. Application: Perfect for construction, mining, oversize load transport, and rugged terrain.

Product parameters.jpg?x-oss-process=style/yasuo

Dimension(Lx W xH)(unloaded)			7240x2500x3530/3870/3470/3260
Wheel base (mm)			3450+1450
Curb weight (kg)			8800
Loading Weight (kg)			40000kg
Engine Steyr technology, made in China	Model		WP10.340E32 WP10.380E32 WP12.400E32 WP12.420E32 water-cooled,four strokes,6 cylinders straight in line,turbocharged, directly injection
	Displacement (L)		9.726/Diesel
	Bore X stroke (mm)		126/130
	Rated power(kW)/Rev(r/min)		276/2200
	Max torque (Nm/rpm)		1460/1200-1600
	Emission		EURO II EuroIII
Fuel tanker (L)			400
Gearbox		Model	12JS200T (FAST transmission, mechanism, 12 forward, 2 reverse, manual, made in China)
Brake system		Service brake	Brake gap can be adjusted automatically, double circulation air brake system
		Assistant brake	Engine exhaust brake
		Park brake	Potential springs pressing on middle and rear wheels
Steering system		Model	TAS85,
Frame		Fish belly, shape, variable width, variable sections, side beam structure
Front axle (use Mercedes Benz Technology)		Double-shoe pneumatic brake, non-driving steering axle
Middle and Rear axle (use Mercedes Benz Technology)		Double-shoe pneumatic brake, casting, double reduction driving axles
Tyre		12.00-20
Electrical system		Battery		2X12V/135Ah
		Generator		28V-35A
		Starter		5.4Kw/24V
Cab		NG80 Long cabin with single sleeper; Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; With inner A/C

Product Details.jpg?x-oss-process=style/yasuo

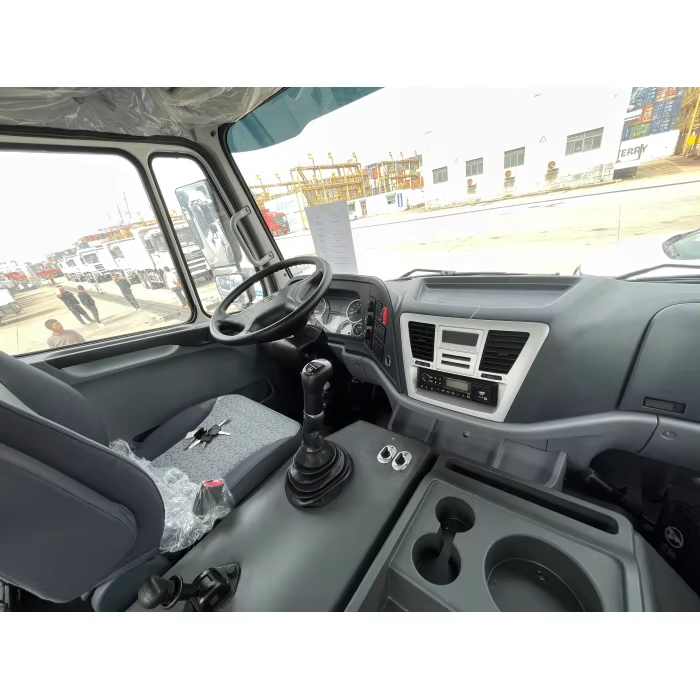

bieben detail.png

 Benz long cabin, with single sleeper , A/C

 Radio player(with USB), Safety belt, Ajustable air type.

 Dash board with all necessary gauges such as (km meter, rpm, oil pressure, temperature, air pressure, fuel level)

 Full steel skeleton structure, covered with double layer steel plate;

 air suspension seats for driver and co driver

1.Famous BEIBEN 6X6 tractor trucks for sale
2.Reinforced chassis for heavy duty towing load
3.Engine WP10.375, 375HP,Euro 3
4.Gearbox FAST 12JSD200TA,manual,12 forward gears
5.Tire 12.00R20 14PR
6.Stable performance,fashion design,mature technique and competitive price

Axle：

Front axle：7Ton driving and steering BENZ axle
Rear axle：13Ton BENZ driving axle, hub redactor,
double reduction
Brake system：Service brake Double circuit pneumatic (air) brake Parking brake
Spring-Power drum brake
