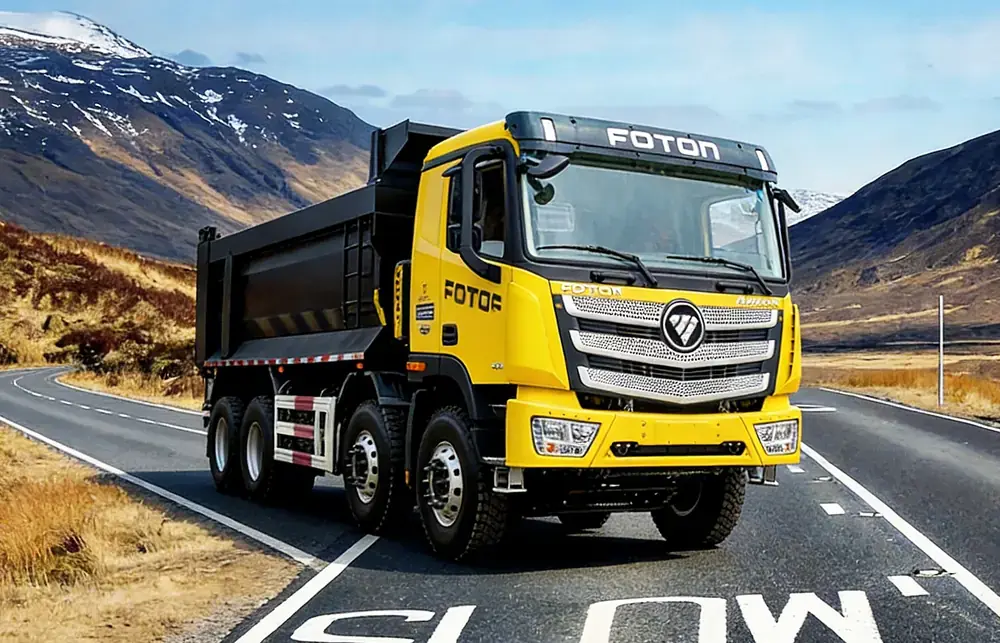

Camion Foton EST Tipper Dump Truck

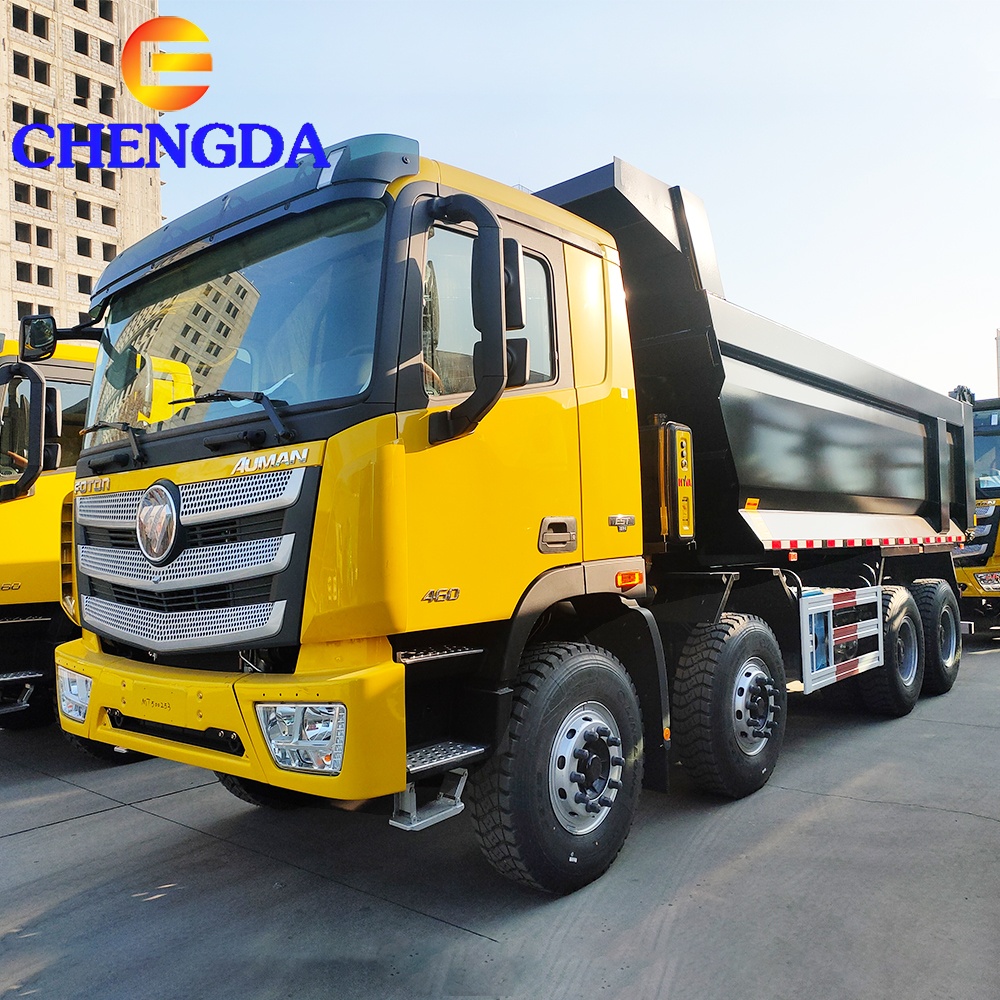

• Chinese Foton EST 6x4 8x4 25-40tons 400hp Foton Auman Dumper Tipper Dump Trucks

•

•












•

  The FOTON EST Heavy-Duty Dump Truck is a cost-optimized high-performance tipper for urban construction muck, sand/gravel and iron sand ore haulage, built for harsh working conditions on the reliable TL platform and tailored for overseas heavy-duty operations.






• EST	EST 4189SLFKA-AGZA03	EST 4259SMFKB-BQZA03	EST 4259SMFKB-26ZA01
  Cab type	High roof extended cab	High roof extended cab	High roof extended cab
  Drive system	4×2	6×4	6×4
  Vehicle dimensions(mm)	6055x 2490x 3495/3468	6950x 2490x 3570/3890	6950x 2490x 3570/3890
  Wheelbase(mm)	3600	3300+1350	3300+1350
  Minimum groud clearance(mm)	243	243	243
  Curb weight(kg)	8250	8800	9800
  GCW/GVW(kg)	40000	55000	90000
  Fuel & Engine
  Fuel type	Diesel	Diesel	Diesel
  Torque Nm/power	2200Nm/316Kw(430HP)	2000Nm/294Kw(400HP)	2000Nm/315Kw(430HP)
  Emission standard	EUROIV	EURO III	EURO III
  Gearbox model	ZF16S2230TO	12JSD180T(Aluminum alloy)	12JSD180T(iron)
  Chassis
  Tire specification	315/80R22.5	315/80R22.5	12.00R20
  Front suspension	Parallel few leaf spring+stable bar+ telescopic shock absoroe	Parallel few leaf spring + stable bar+ telescopic shock absorbe	Muotileaved spring + telescopic shock absorbe
  Rear suspension	Parallel few leaf spring+ stable bar+ telescopic shock absoroe	Equalizing type of suspension + parallel leaf spring	Muotileaved spring + trunnion shaft
  Rear axle	13T485 Single reduction axle	13T469 Single reduction final axle	13T Benz double reduction axle
  Final drive ratio	3.7	3.083	4.76
  Rear axle option	4.111/ 4.111(ABS) /3.7(ABS)	3.364/ 3.364(ABS)/ 4.111/ 4.111(ABS)/3.7/3.7(ABS)/ 3.083(ABS)/ 2.714/2.714(ABS)	4.76(ABS)/5.26/ 5.26(ABS)/4.20 /4.20(ABS)

•


• 16T double reduction rear axle
  On the basis of the original structure of the axle body intermediate differential housing, the radius at the installation
  positions of bearings is enlarged from R1.6 to R2.2 to reduce the malfunction rate and remarkably improve the reliability of the axle.
  The chassis is optimized by 16T Benz technology to increase the drive efficiency by 5% than traditional heavy-duty trucks and save the fuel by 5~8%/100km.
  Reinforced crossbeam
  Dump truck exclusive reinforced crossbeam
  The crossbeam width is increased from original 150mm to 206mm to prevent the breakage of balance shaft crossbeam and looseness of bolts and realize higher reliability and durability.
  The number of connecting holes on the top of balance shaft support is increased from 4 pieces to 6 pieces and the connecting bolts are changed from M16 to M18.
  High effective loading capacity suspension
  The suspension is reinforced by angular support plates to reduce the bending of framework and the double U-bolts can support higher load.
  The material, thickness, and manufacturing process are improved for the leaf springs. The 50CrVA→51CrV4 premium springs and the shot blasting treatment are used for the leaf springs to improve the strength, ductility, and fatigue and life of the parts. The leas springs for front and rear suspensions adopt 9-plate and 12-plate multi-leaf springs and the 13/14-plate and 12-plate multi-leaf springs remarkably improve the loading capacity.
  Large hydraulic cylinders
  EST dump truck is equipped with powerful large-diameter 180~200mm hydraulic cylinder. Based on the specific application, the hydraulic cylinder can be installed on the front or the bottom.
  The lifting mode is divided to forward-lifting mode and middle-lifting mode.


•

• To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

•

•

•

What's your MOQ?

One unit trailer or truck.

How I believe you?

We have a factory ourselves,we are on this business for few years in China. Our factory is very famous in the Shandong China. We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.

Can you give warranty of your products?

Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.

How about the delivery time? How do you transport the semi trailers ?

Within 15-35 days after we confirm you requirement. We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.

What kind of payment does your company support?

T/T, 100% L/C at sight, Cash are all accepted if you have other payment,please contact me.
