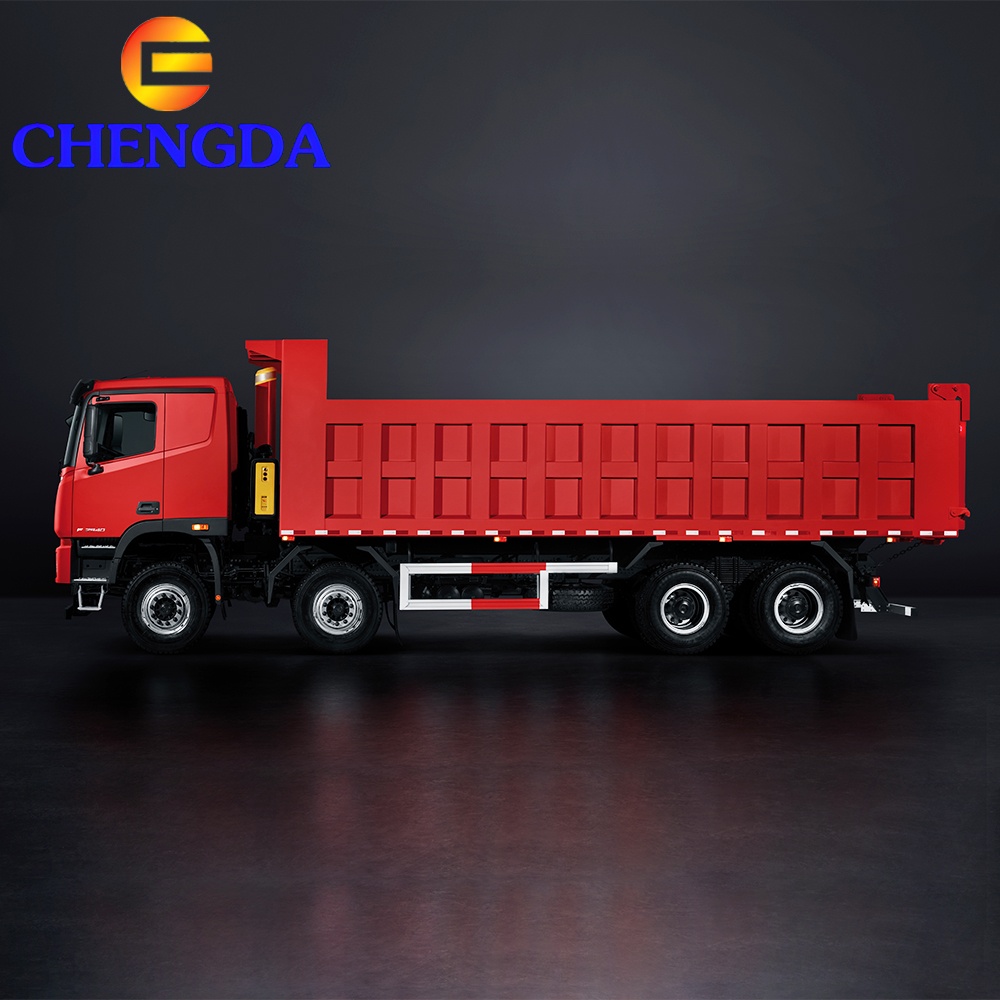

Camion Foton GTL Tipper Dump Truck

FOTON AUMAN GTL 6X4 8x4 Dumper Tipper Truck 30 40 Ton Dump Truck for Construction

•

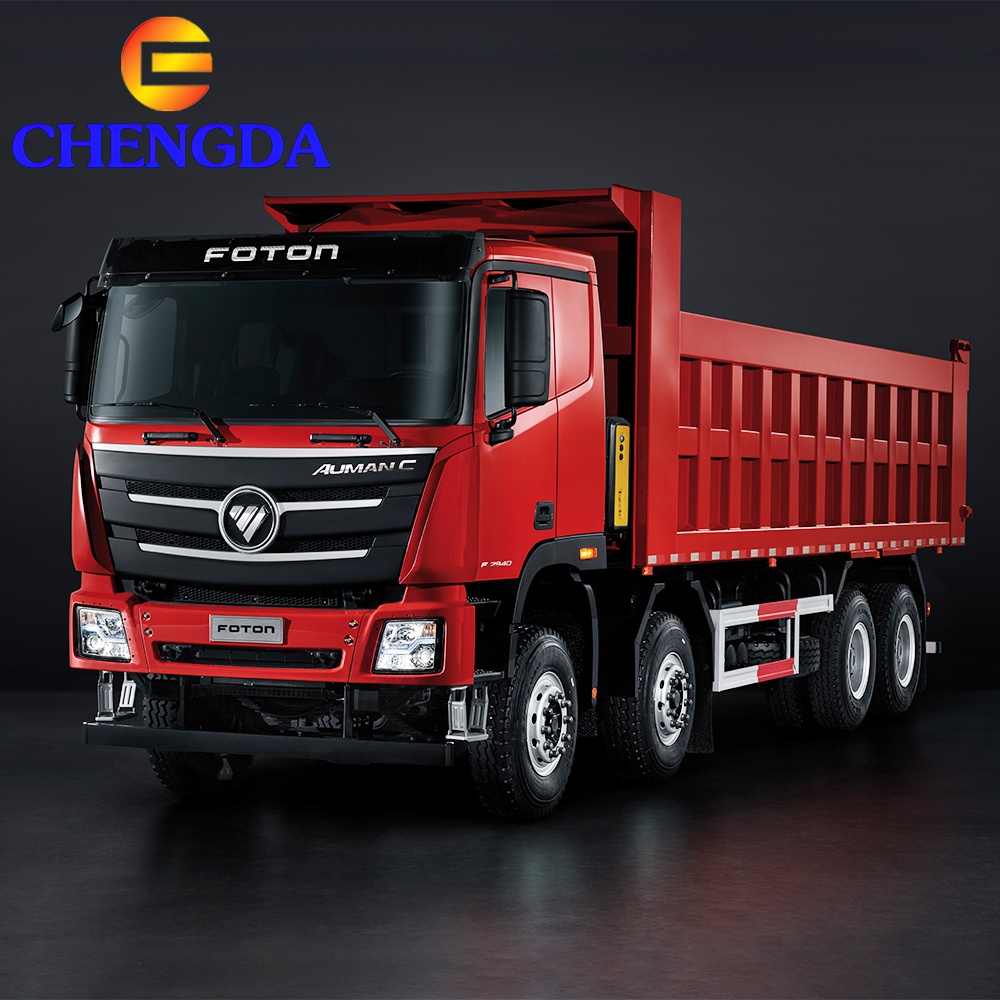

  The Foton Auman GTL dump truck is a heavy-duty engineering vehicle designed for construction, mining and bulk material transportation. It is equipped with a high-power, reliable diesel engine matched with a stable transmission system, which provides strong power output, high torque and excellent climbing performance for heavy-load operations.






• GENERAL INFO
  Product Model	FOTON GTL 9 Series 8×4 Heavy-Duty Dump Truck
  Overall Dimension	9600/9850×2495×3580
  Gross Vehicle Weight	31000 kg
  Function	Mining & Construction
  Max. Loading Capacity	50-80 Tons
  Wheelbase	1800 + 3300 + 1400 mm
  CHASIS
  Model	FOTON GTL 9
  Cab Capacity	2-3 Person
  Steering	RHD / LHD
  Engine	Cummins ISG 400 Hp
  Transmission	HW23712 12-Speed
  Axle Config	Mercedes-Benz Technique Axles
  Tires Type	13R22.5 18PR
  UPPER STRUCTURE
  Box Dimension	6500/6700×2300×1500 mm
  Side Thickness	80 mm (Customizable)
  Bottom Thickness	100 mm (Customizable)
  Tipping Method Position	Front (Customizable)
  Hydraulic Cylinder Diameter	260 mm (Customizable)
  Dump Box Material	Customized
  Unloading Methods	Side / Rear Customized
  Box Shape	Customized
  Tarpaulin	Upon Selection

•

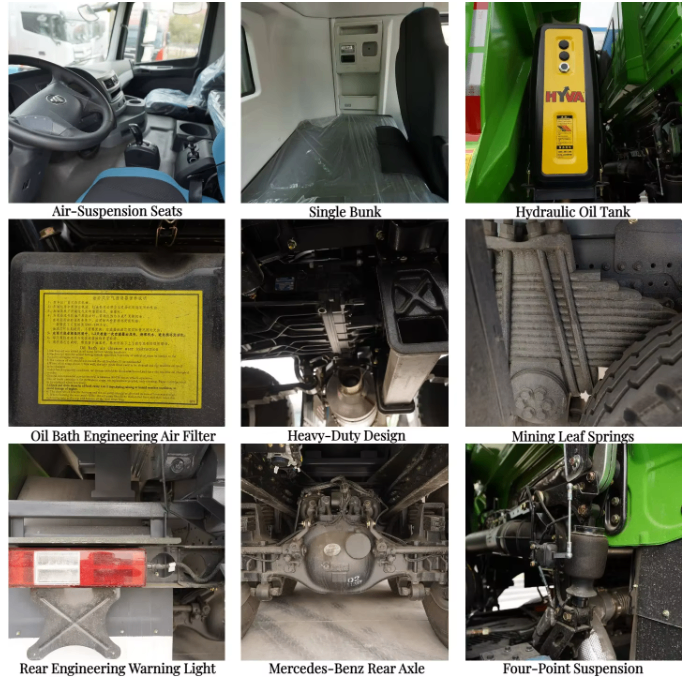

• Powerful Engine: ISG 400 diesel engine (400HP) with 2100N·m torque, high-pressure common rail for strong climbing on complex roads.

• Robust Drivetrain: 8×4 drive + HW23712 transmission, 16t Mercedes-Benz rear axle (5.26 ratio) with ABS for stable heavy-load operation.

• Super Load-Bearing: 9t front axle + balance suspension, supports a maximum vehicle-cargo total weight of 80 tons.

• Durable Cargo Box: 6500/6700×2300×1500mm, rugged build for muck, sand/gravel and iron sand ore haulage on worksites.

• Ergonomic Cab: GTL flat cab with airbag seat, electric windows and central lock for comfortable daily operation.

• Reinforced Chassis: 225/320×90×(8+7) longitudinal beam, high structural strength for long-term heavy-duty work.

•

• To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

•

•

• Our main products cover over 100 varieties, including Truck Trailers，refrigerated trucks, sanitation trucks, emergency rescue vehicles, engineering vehicles, fuel tank trucks, wrecker trucks, environmental sanitation trucks, cargo trucks, dump trucks, truck-mounted cranes, fire trucks and ambulances, widely used in logistics, environmental protection, emergency support, engineering, medical rescue and fire fighting.


•

•

•
