Used Shacman F3000 Concrete Mixer Truck

Used Shacman F3000 Concrete Mixer Truck

Used Shacman F3000 Concrete Mixer Truck

The concrete mixer truck is a specialized construction vehicle engineered for transporting and mixing concrete. Professionally refurbished to Grade A standard.Inquire for price!

Product Details

special truck.webp

Refubished 6X4 concrete Cement mixer truck 8m3 10m3 Used Shacman F3000 Concrete Mixer Truck

Product display.jpg?x-oss-process=style/yasuo

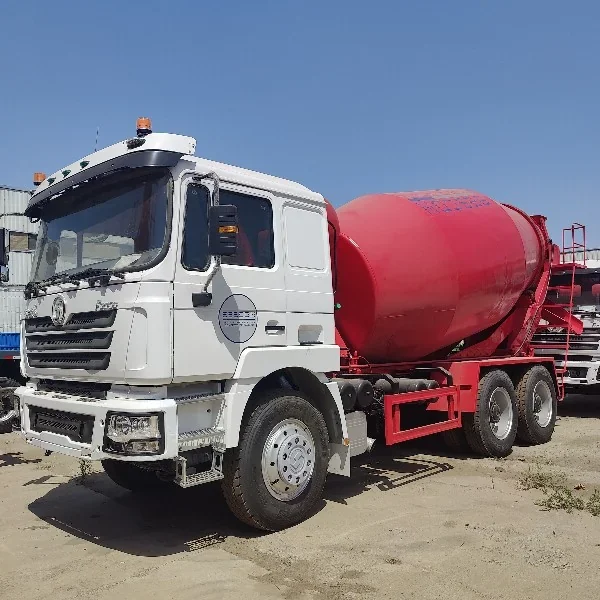

used shacman concrete mixer truck (4).webp

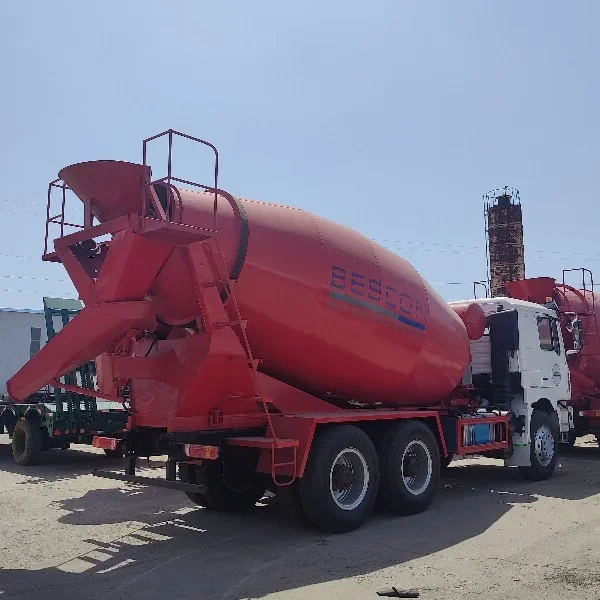

used shacman concrete mixer truck (6).webp

A refurbished Shacman F3000 concrete mixer truck is one of the most popular alternatives to a brand-new HOWO. The F3000 series is famous for using MAN technology (German engineering) in its chassis and axles, making it a "bulletproof" choice for the secondary market.

Main purpose of a concrete mixer truck:Transport and mix fresh concrete continuously, prevent concrete from solidifying during transportation, and deliver ready-mixed concrete to construction sites.


Product parameters.jpg?x-oss-process=style/yasuo

MODEL

SX5255GJB5T384

Driver position

Left Hand

Cab

Medium length flat top

Driving type

6*4

Wheelbase

3775+1400

Max. Speed(km/h)

80km/h

Engine

Brand

WEICHAI


Model

WP10.380E22


Emission Standard

EUROII


Rated output power(PS)

380


Displacement (L)

9.726L

Transmission

Brand

FAST


Model

10JSD180+PT0

Front axle

Brand

HANDE


Model

MAN 9.5T

Rear axle

Brand

HANDE


Model

16T MAN double reduction driving axle
Speed ratio 5.262

Clutch

¢430 diaphragm clutch¢430

Frame

850×300(8+7)

Suspension

multiple leaf springs front and rear/four main spring + four bolts

Fuel tank

400LAluminum alloy

Wheels and tires

12.00R20(12+1)

Brakes

Running brake:Dual circuit compressed air brake


Parking brake:Air discharging with spring control


Auxiliary brake:Engine exhaust brake

Cabin

Hydraulic main seat, four-point hydraulic suspension cab, normal mirrors, electronically controlled automatic thermostatic air conditioning, electric window crank, manual rollover, oil bath air filter, metal bumpers, oil sump protection, front and rear headlight protection grilles, two-stage pedals, water tank protection grilles, one additional long-life coarse filter, 165Ah maintenance battery, SHACMAN logo, full English logo

Upbody

10 square mixing, PMP full hydraulic system, 18L radiator, 450L water tank, tank thickness 5mm, head thickness 6mm.

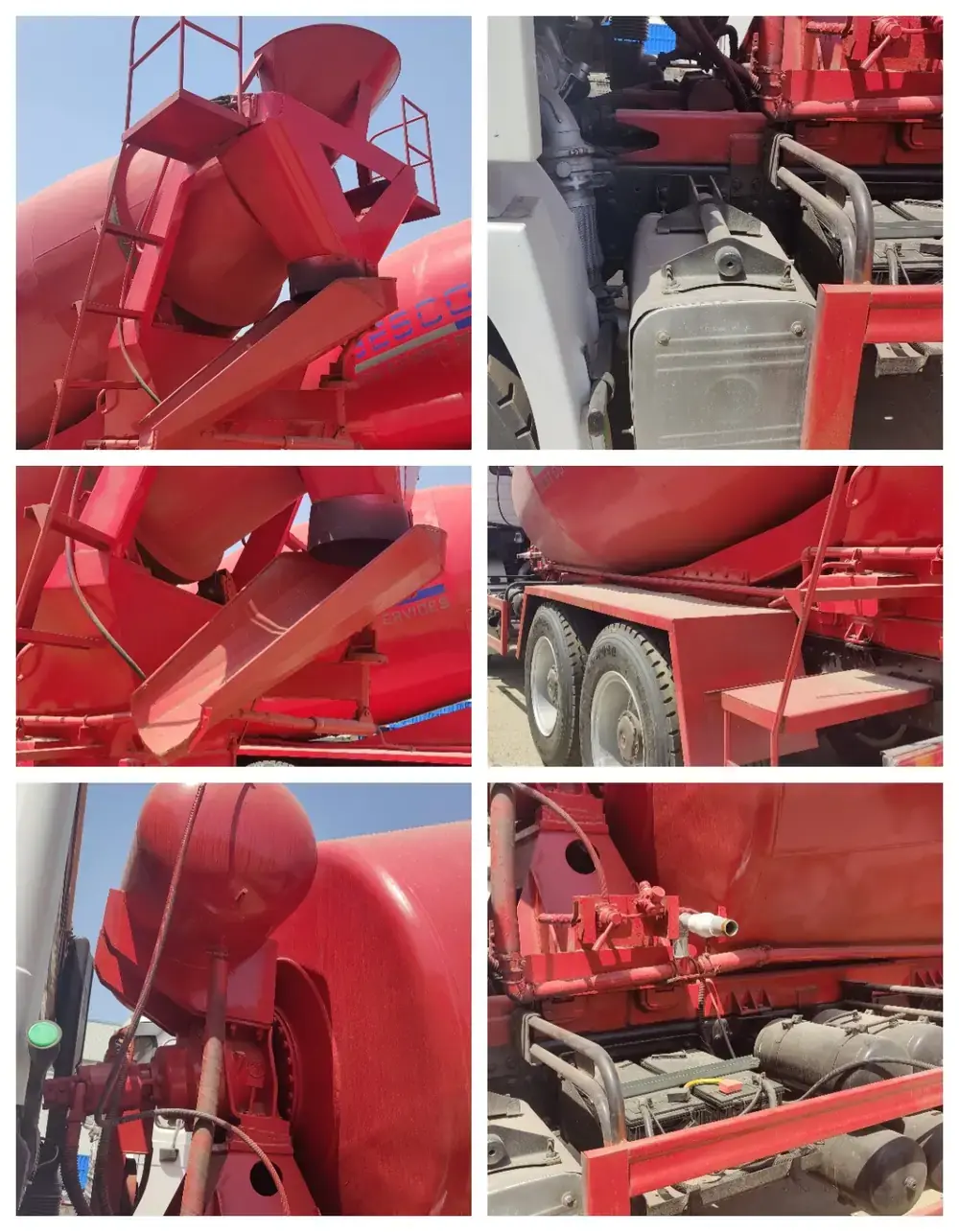

Product details.jpg?x-oss-process=style/yasuo


we attach great importance to the overall condition, performance and details of used mixer truck. every used mixer truck is a boutique.

our every used mixer truck must pass early stage " used truck optimum selection, key parts detection and replacement ", before delivery " all-round debugging of used truck, comprehensive inspection of used truck ". ensure that before deliver to customer, every used truck is excellent condition and good porformance.

The "Golden" Specs (F3000 6x4 & 8x4)

Refurbished models usually feature the most reliable, easy-to-fix components:

  • Engine: Weichai WP10 series (340HP or 380HP). These are preferred in the refurbished market because they are simple to maintain and parts are available globally.

  • Transmission: Fast Gear (10-speed or 12-speed). A manual gearbox that is nearly indestructible.

  • Axles: Hande (MAN Technology) 16-ton double reduction axles. This is the Shacman’s biggest advantage over competitors—it handles overloaded concrete drums better than almost any other truck

  • Mixing System: Standard 10m³ to 14m³ drums, usually paired with Eaton or Rexroth hydraulic pumps.


 What "Refurbished" Actually Means

A high-quality refurbishment (especially from reputable Chinese export hubs) should include:

  1. Engine Overhaul: Replacing piston rings, liners, and gaskets. The engine is usually steam-cleaned and repainted.

  2. Chassis Reinforcement: Checking for cracks in the frame and sandblasting/repainting to prevent rust.

  3. New Wear Parts: New tires, new batteries, and often a completely new interior seat/dashboard trim.

  4. Drum Inspection: The internal spiral blades are checked. If they are worn down (which reduces mixing efficiency), they are cut out and re-welded with new high-strength steel.

  5. Hydraulic Flush: Replacing the hydraulic oil and filters for the drum motor to ensure smooth rotation under load.

Packaging and transportation.jpg?x-oss-process=style/yasuo

搅拌车(详情页)_10.jpg?x-oss-process=style/yasuo

Usually Our Construction machinery can be shipped by Ro-ro ship or Bulk ship or Flat rack container. Packing Detail: Ro-Ro or Bulk base on the ship and port in your country.
