Sinotruk Howo TX 8x4 Concrete Mixer Truck

Sinotruk Howo TX 8x4 Concrete Mixer Truck

Sinotruk Howo TX 8x4 Concrete Mixer Truck

The concrete mixer truck is a specialized construction vehicle engineered for transporting and mixing concrete. Inquire for price!

Product Details

搅拌车(详情页)_01.jpg?x-oss-process=style/yasuo

Brand New Heavy Duty 12 Wheeler 8x4 Sino Truck howo TX Cement mixer Concrete Mixer Truck

Product display.jpg?x-oss-process=style/yasuo

concrete mix truck (1).webpconcrete mix truck (4).webp

The HOWO 8X4 Concrete Mixer Truck (manufactured by Sinotruk) is a heavy-duty powerhouse designed for large-scale construction projects. Its "8X4" designation refers to its 4-axle configuration (12 wheels total), where 2 axles provide the steering and 2 axles provide the drive.


A concrete mixer truck (often called a "transit mixer") is essentially a mobile factory. Its primary function is to keep concrete in a liquid, uniform state from the batching plant to the job site. If the drum stopped spinning, the concrete would settle and harden into a solid mass, effectively "totaling" the truck.


Product parameters.jpg?x-oss-process=style/yasuo

Overall dimension

10300x2550x3990mm

Kerb weight

13900kg

Mixing drum material

High quality wear-resistance steel Q345B

Drum body thickness

5mm, End cover thickness:6mm

Agitating capacity

9m³

Charging rate

≥3m³/min

Top feed hopper dimension

≥650 mm

Discharging rate

≥2m³/min

Residual rate

≤0.5%

Water supply

Baric water supply system

Water tank capacity

450L

Radiator

18L

Reduction gear

ZF P 4300 Reducer, Germany brand

Hydraulic pump

PMH P90, ltaly Brand

Hydraulic motor

PMH M90, ltaly brand

Axle base

3825+1350MM

Engine model

WD615.47.EURO II

Transmission(Gear box)

HW19710

Tyre

12.00R20(10+1)

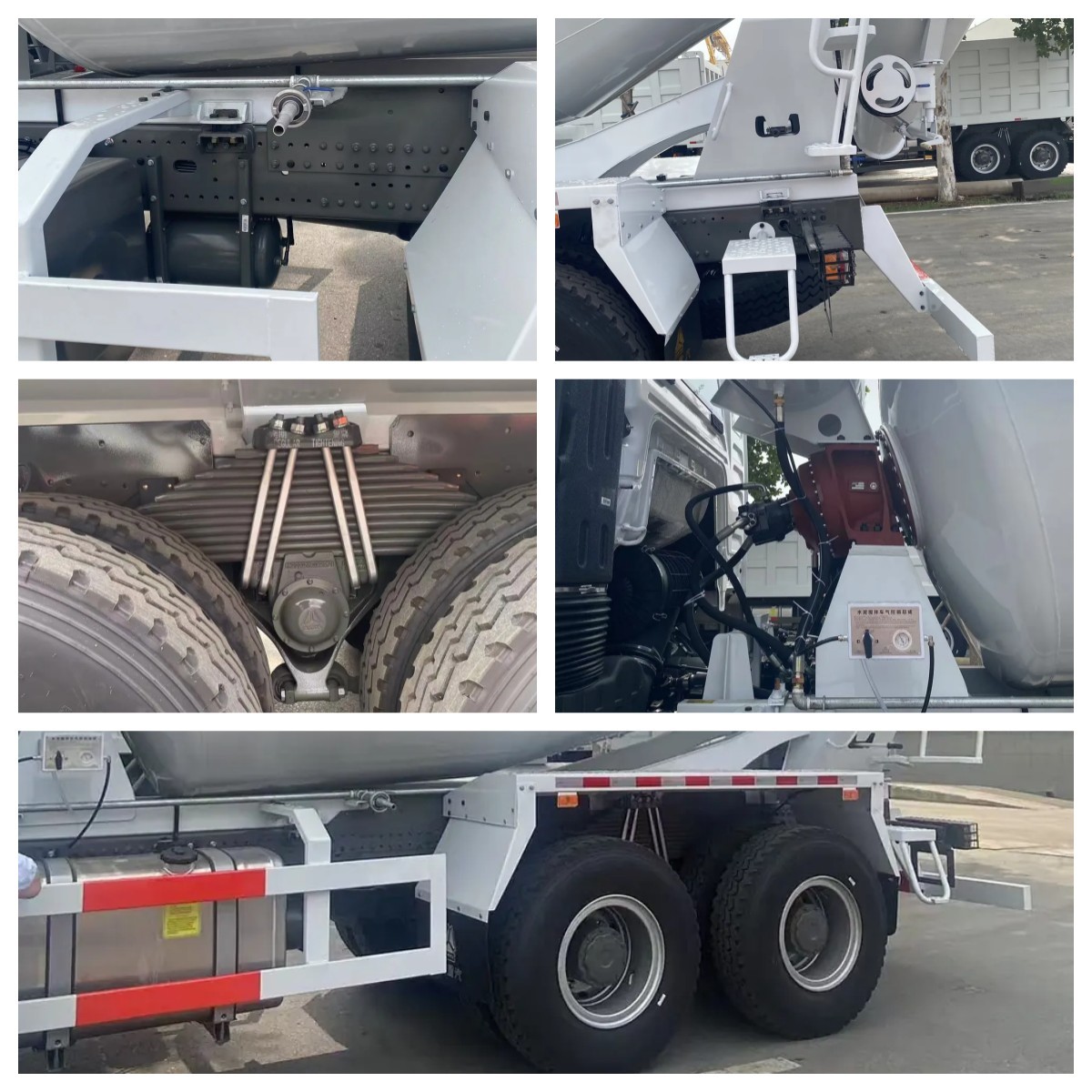

Product details.jpg?x-oss-process=style/yasuo


The biggest highlight of the howo-tx concrete mixer is the side OK glass window, especially in the process of driving to reduce the visual field blind area that is easy to appear when driving under urban conditions, to ensure the basic safety of material transportation. Of course, the efficient carrying capacity, Weichai power chain and wide-body sleeping berth are also the basic elements of the howo-tx concrete mixing truck to meet the current transportation development, and the benefits of transportation enterprises and the basic safety of drivers are considered thoughtfully and fully.

Packaging and transportation.jpg?x-oss-process=style/yasuo

搅拌车(详情页)_10.jpg?x-oss-process=style/yasuo

Usually Our Construction machinery can be shipped by Ro-ro ship or Bulk ship or Flat rack container. Packing Detail: Ro-Ro or Bulk base on the ship and port in your country.

Factory display.jpg?x-oss-process=style/yasuo
