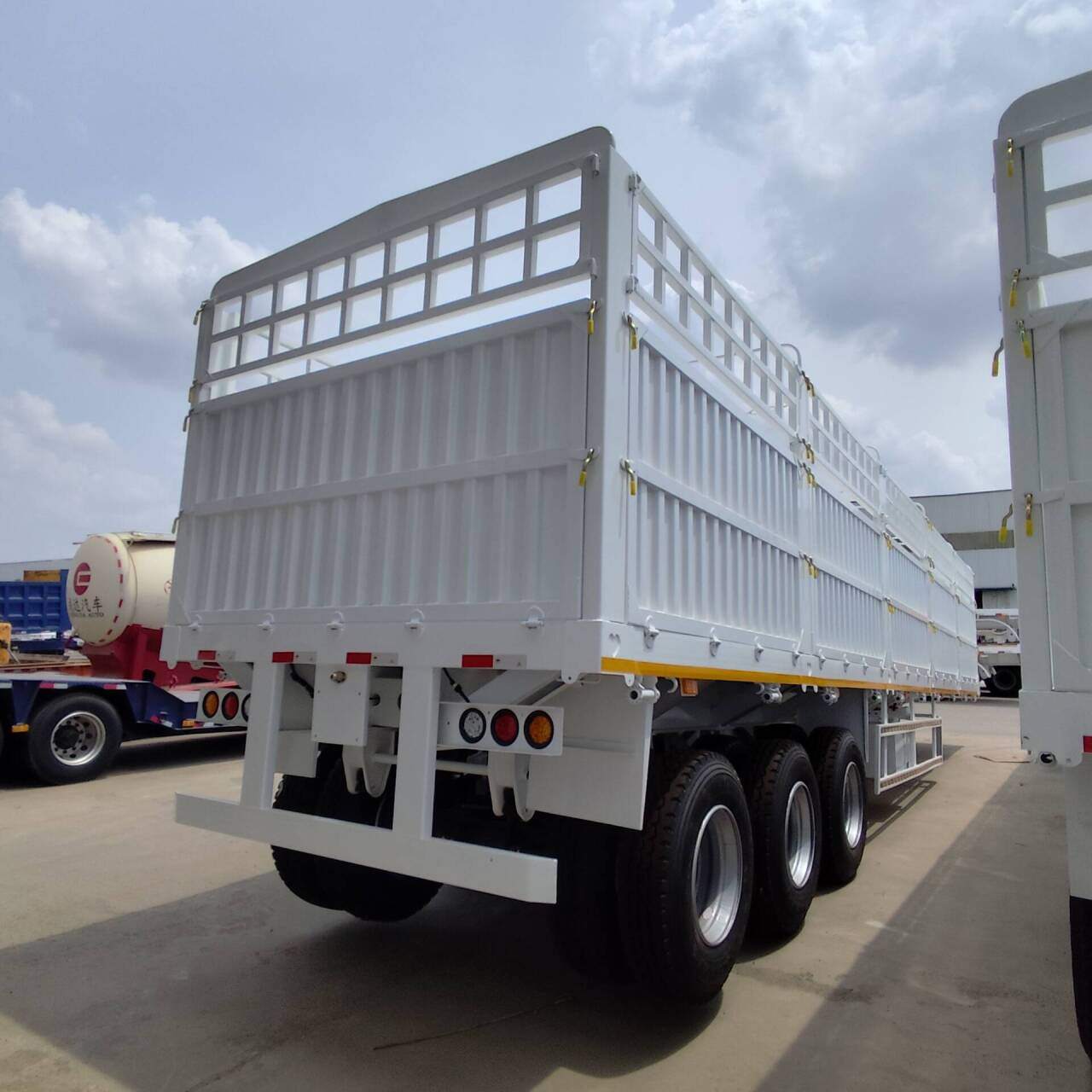

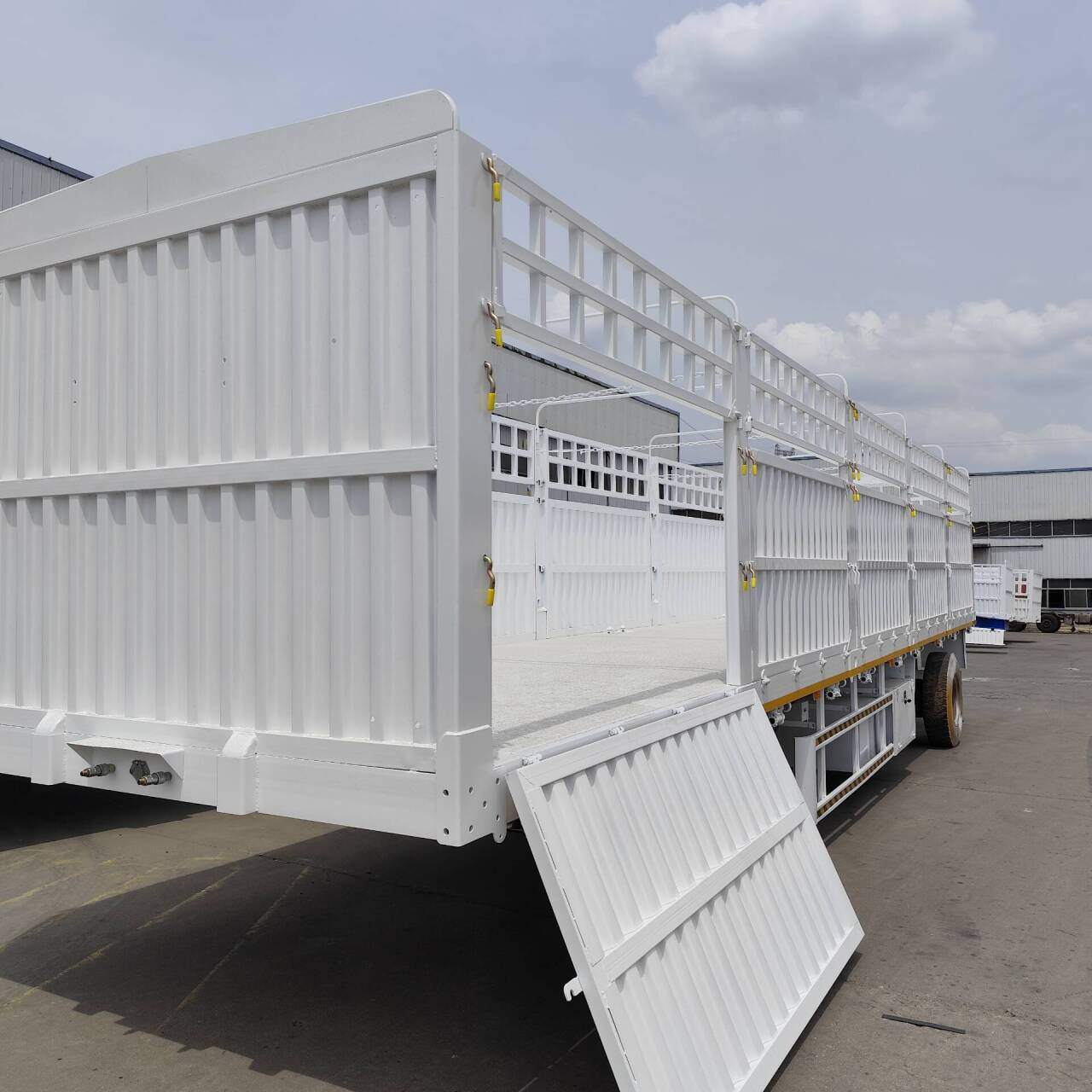

Fence semi trailer is highly versatile and can be used to haul a wide variety of cargo. The open fence design promotes airflow, which is beneficial for transporting goods that require ventilation, such as fresh produce or livestock. It helps maintain appropriate temperature and air quality for sensitive cargo.

Product Details

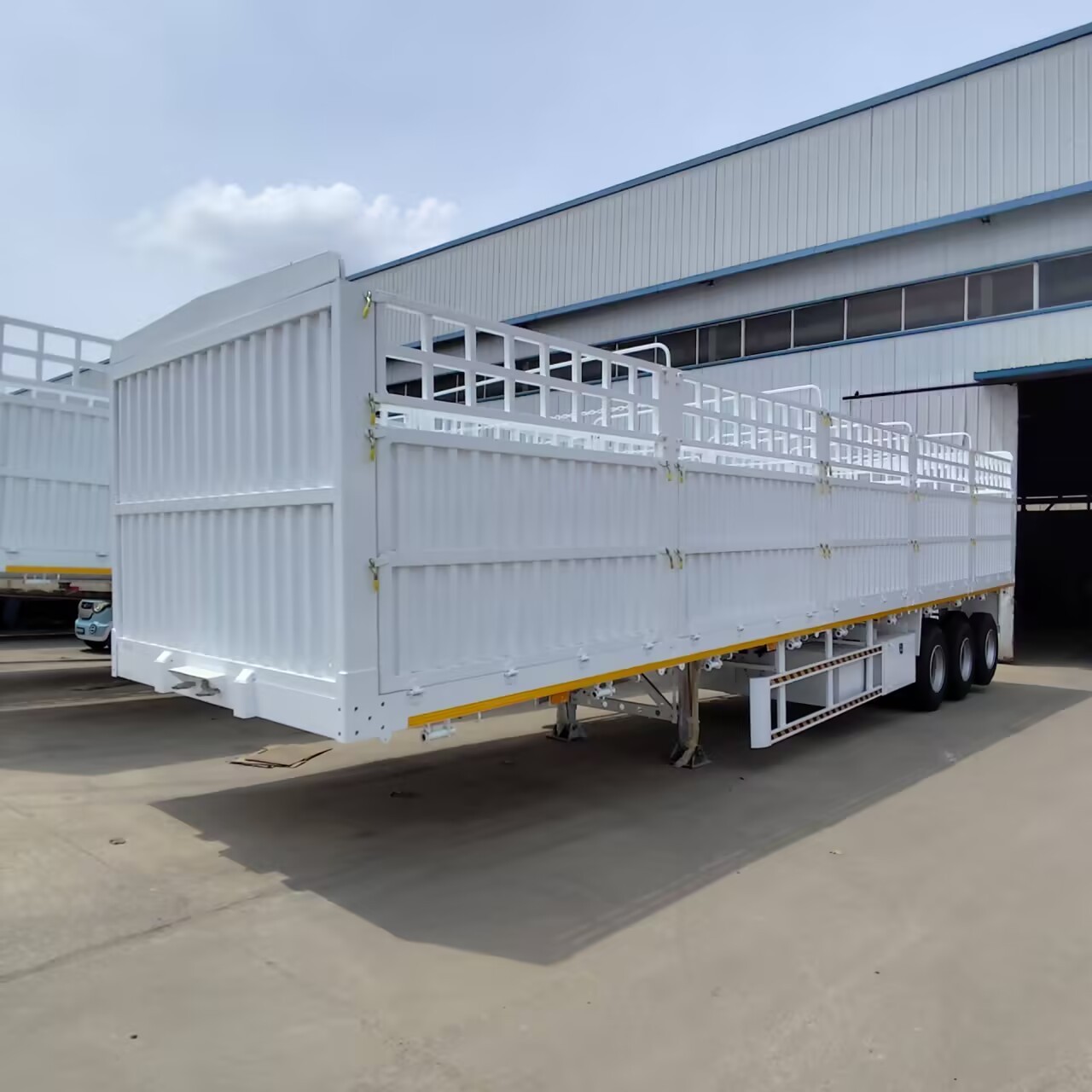

3 Axle 60t Fence Cargo Semi Trailer for Livestock Animal Cattle Sheep Pig Transport Bulk Cargo Fence Semi Trailer

Product display.jpg

Fence semi trailer is highly versatile and can be used to haul a wide variety of cargo. The open fence design promotes airflow,

which is beneficial for transporting goods that require ventilation, such as fresh produce or livestock. It helps maintain appropriate temperature and air quality for sensitive cargo.

Product parameters.jpg

Fence Cargo Semi Trailer(Customerize and OEM Service Available)

Application

Coal/ Livestock/Vegetable/Cargo Loading

Product Name

2 axles fence semi trailer

3 axles fence semi trailer

4 axles fence semi trailer

Size

9500/11000*2500*2800/3800 (mm)

12500/13000*2500*2800/3800 (mm)

12500/13000*2500*2800/3800 (mm)

Payload

30-60Ton

30-80Ton

40-100Ton

Main beam

Height: 500mm, upper plate is 12mm, middle plate is 6mm, down plate is 14mm ; Material is Q345B Steel.

Height: 500mm, upper plate is 16mm, middle plate is 10mm, down plate is 18mm ; Material is Q345B Steel.

Height: 500mm, upper plate is 18mm, middle plate is 12mm, down plate is 20mm ; Material is Q345B Steel.

Axles

2*13T/16Ton/ FUWA/BPW/Other

3*13T/16Ton/FUWA/BPW/Other

4*13T/16Ton
/ FUWA/BPW/Other

Side Wall Height

600mm-1700mm (can be customized)

Side beam

16mm channel steel (Material is Q235B steel)

Bottom Platform

3mm checquered steel plate

Suspension

Mechanical suspension (Air suspension optional)

Leaf spring

90(width)mm*13(thickness)mm*10 layer(especial for exporting market)

Tire

12R22.5 / 11.00R20 8/12pcs (Other size optional)

Rim

9.00-22.5 / 11.00R20 8/12pcs (Other size optional)

Kin pin

Jost brand 2.0 or 3.5 inch

Landing gear

Jost brand 28Ton two speed

Braking system

Wabco re 6 relay valve; T30/30+T30 spring brake chamber; two units of 45L air tanks

Electrical

LED light, 7 ways, 24V

Tool box

One piece 1m*0.5m*0.5m ( size can be customized)

Twist locks

Optional

ABS

Optional

Painting

1.Sand blasting processing clean rust.

2.Coat of anticorrosive primer.
3.Coats of finish urethane paint.
4.Color as customer choice.

Shipping terms

By bulk vessel, RORO, or 40HQ container

Product details.jpg

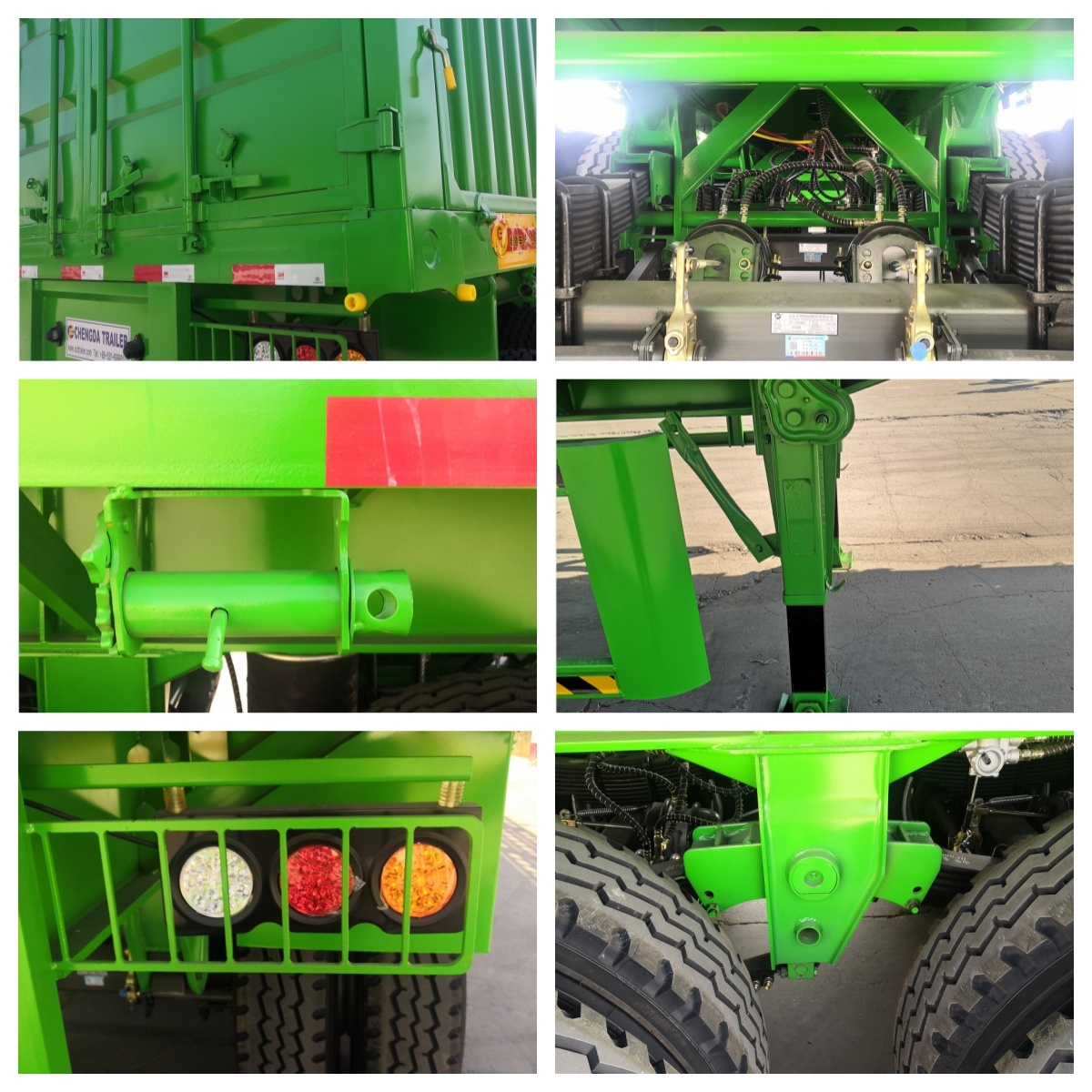

fence trailer detail.jpg

AIR SUSPENSION

Optional air suspension, Specially designed and for oversea markets

LANDING GEAR

Optional mechanical landing gear and hydraulic automatic landing gear

REAR LIGHT

Highlight the rear taillights to improve nighttime driving safety

SPARE TIRE FIXING DEVICE

High strength chain is firmly fixed and easy to use

TIRE

Different specifications of tires can be optionally installed to meet the needs of different scenarios

LEAF SPRING

Simple structuregood shock absorption effect

Packaging and transportation.jpg

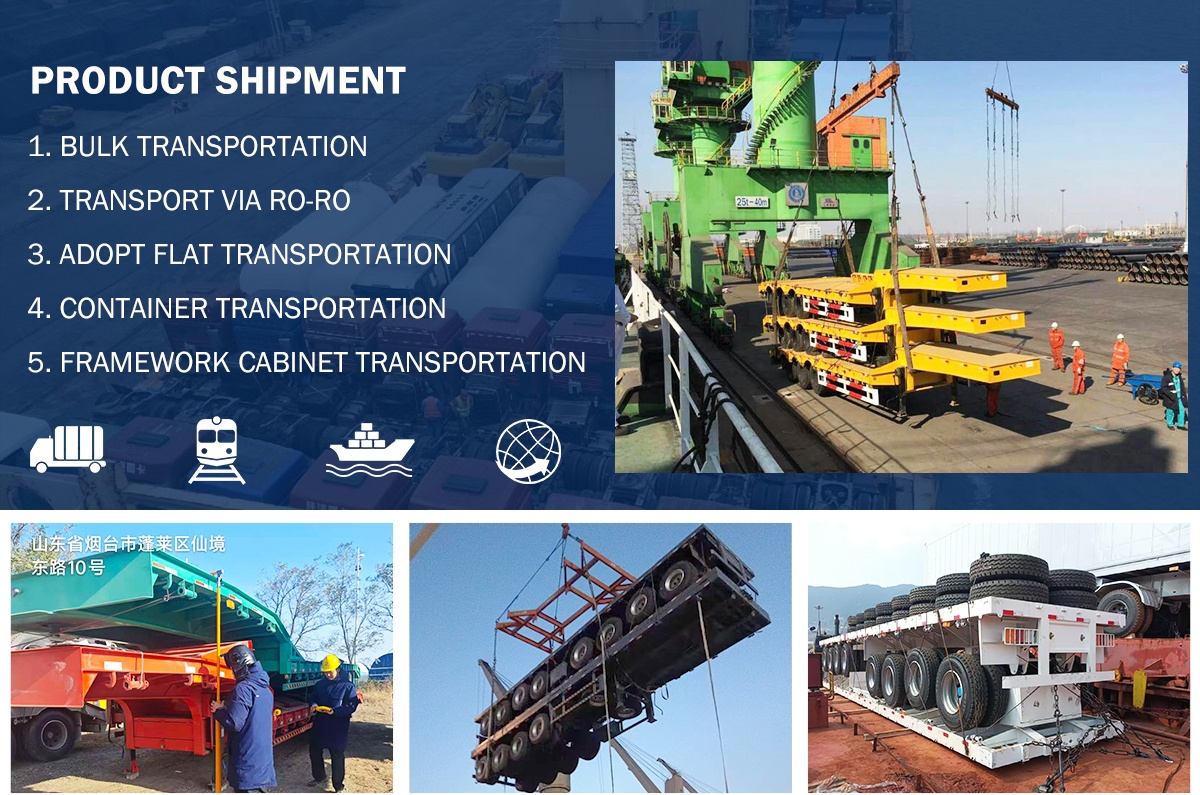

1. Normally, shipping semi trailers need Bulk Vessel or RoRo Vessel.

2. For some trailers, like flatbed trailer, chassis trailer, short low bed trailer, howo trucks, we can use container ship, 40HQ, 45FT and Flat Rack

Factory display.jpg

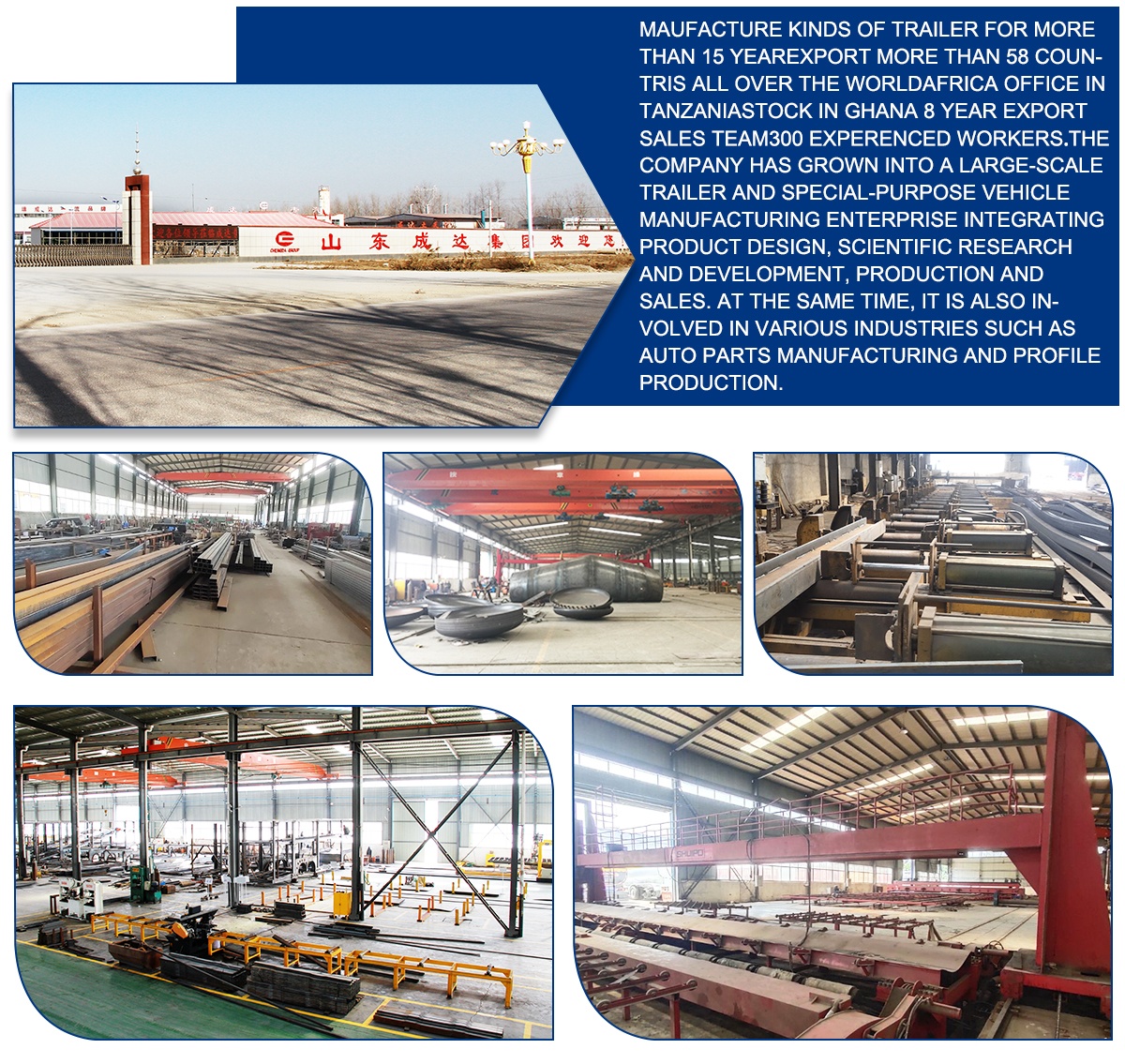

Our office is more than 1,000 square meters, and we have our own custom factory, a sales team of nearly 100 people, and a service support and factory staff of 200+ people.


We have received customers from many countries in the world, such as Ghana, Botswana, Zimbabwe, Mozambique, and the Philippines.They have given a high evaluation. Welcome to visit our factory and office !!

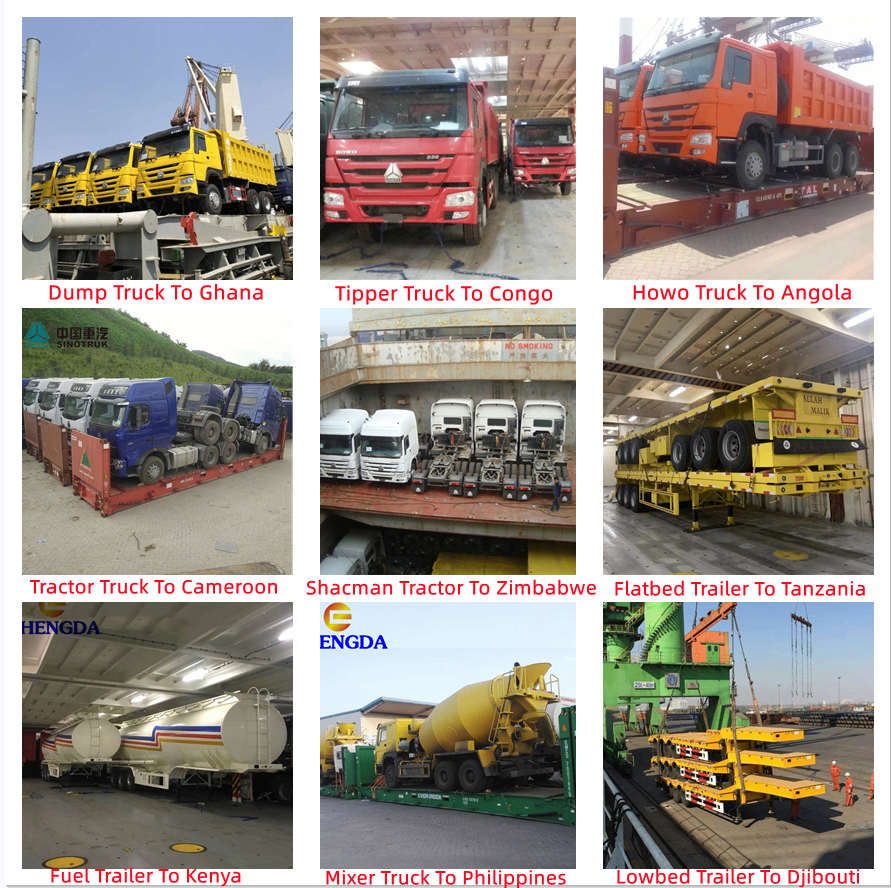

Our products are exported to more than 20 countries around the world, and more than 8,000 trucks and semi-trailers are sold.Below are some real pictures of truck and trailer delivery for your reference.
