The silo tanker is designed for the safe and efficient transportation of dry bulk materials such as cement, fly ash, and lime powder. Its sealed tank structure helps prevent moisture ingress and material loss during transport, ensuring clean and stable operation.

Product Details

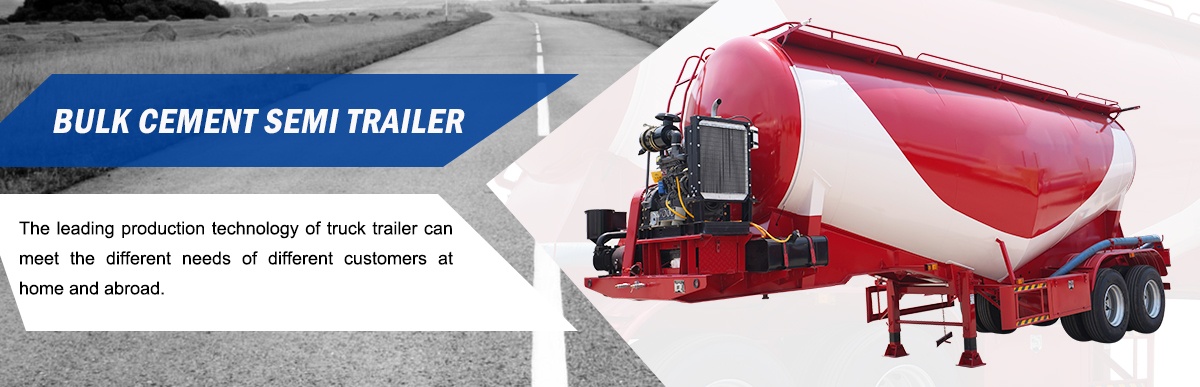

Heavy Duty Customized Steel V-type Cement Dry Fly Ash Transportation Tanker Bulk Cement Semi Trailer

The bulk cement semi-trailer uses the engine power to drive the on-board air compressor through the power take-off, sends the compressed air into the tank, and liquefies the powdery material through the liquefaction device. Due to the pressure difference between the inside and outside of the tank, the powdery material is transported to the designated position along the discharge line along with the air

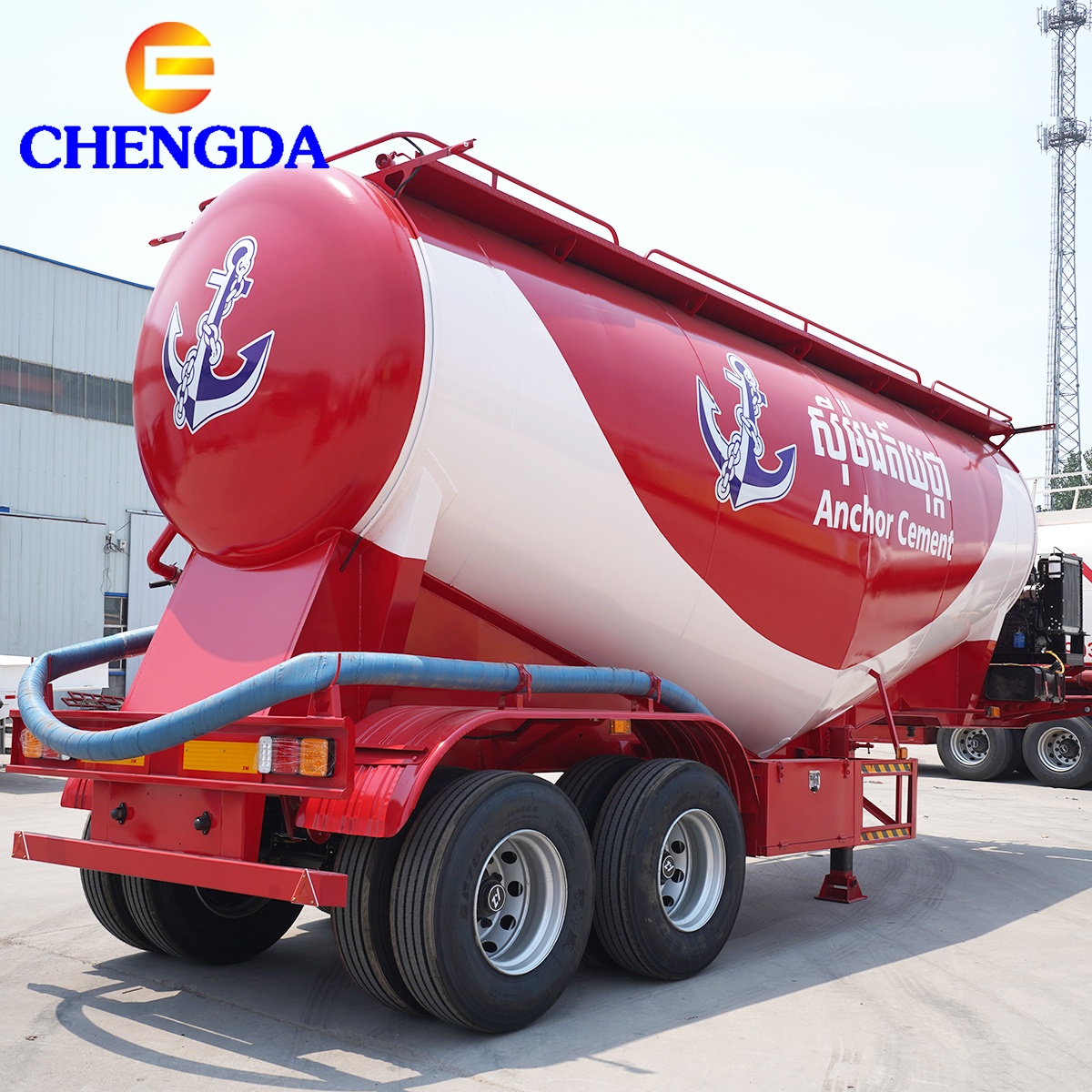

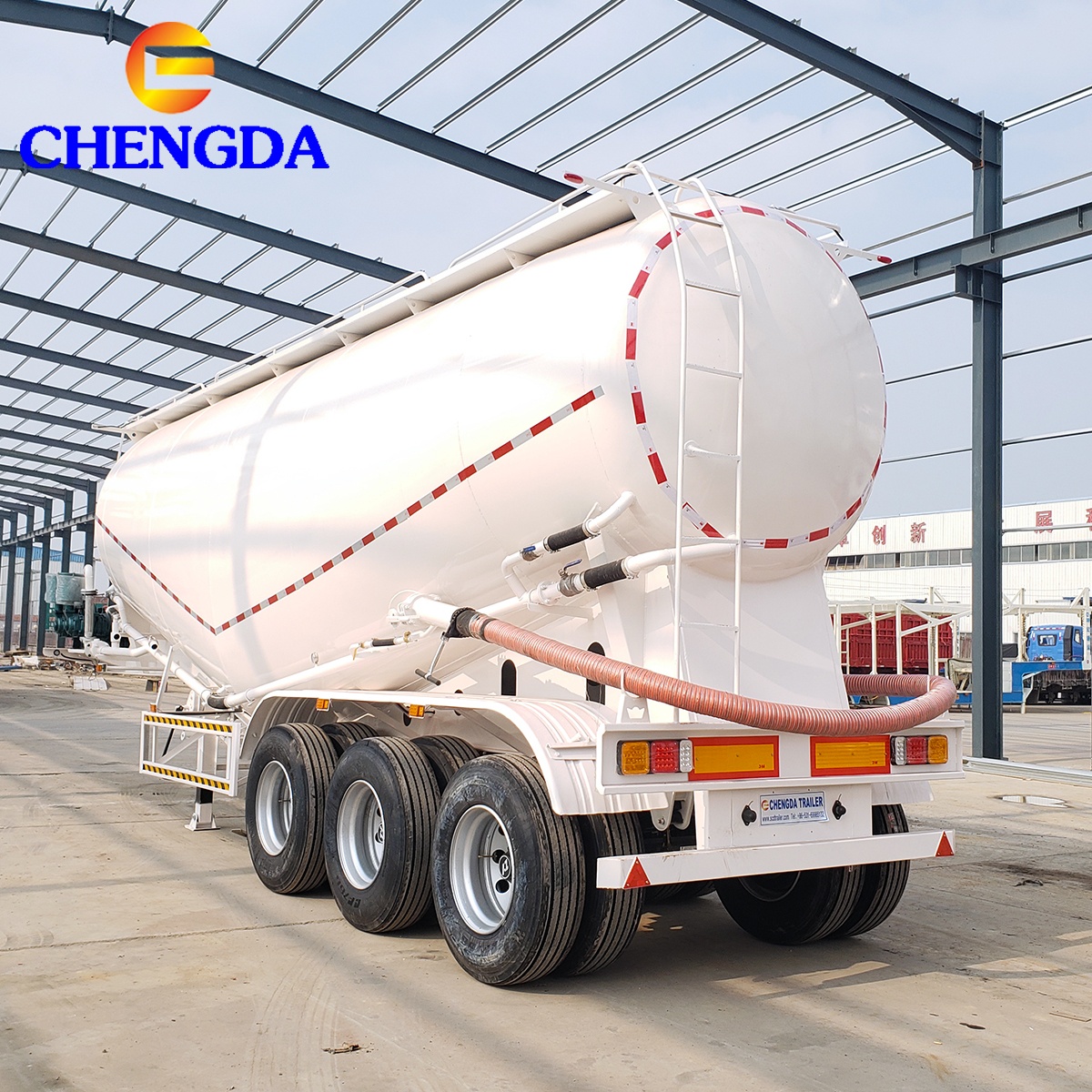

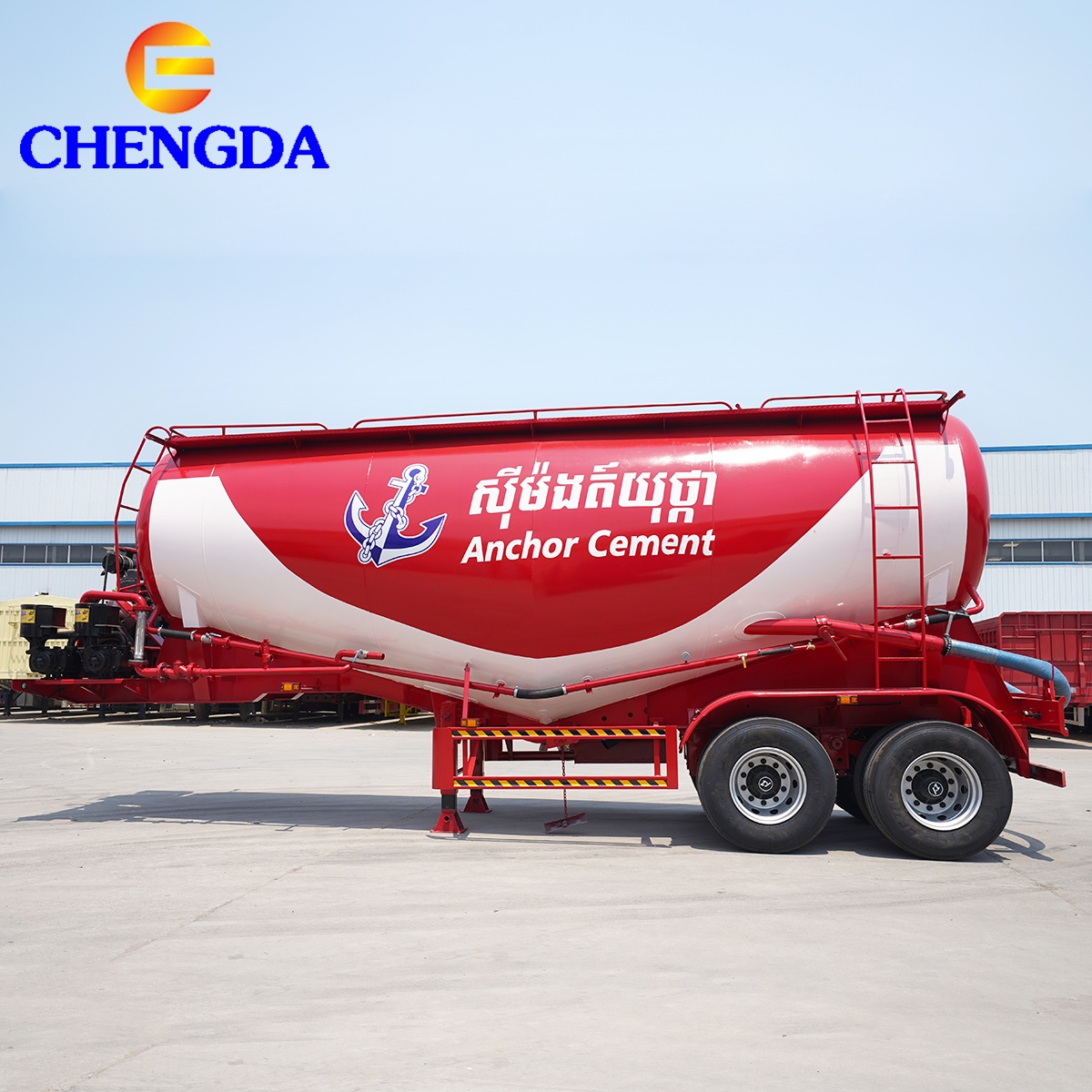

Product display.jpg

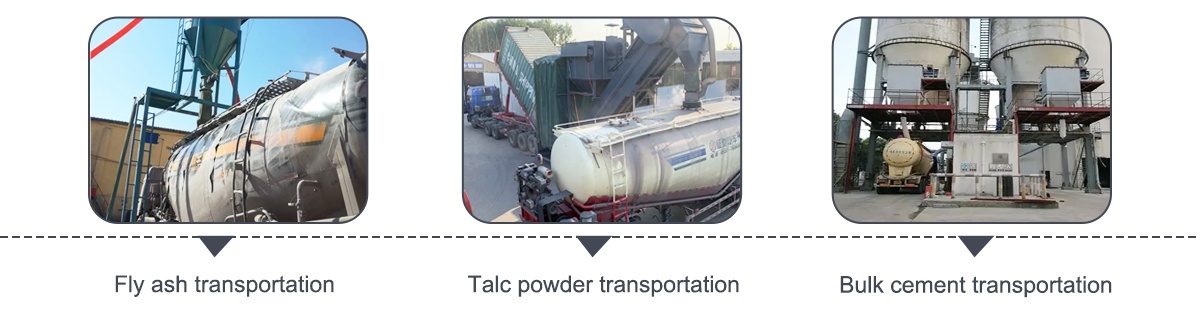

The silo tanker is designed for the safe and efficient transportation of dry bulk materials such as cement, fly ash, and lime powder. Its sealed tank structure helps prevent moisture ingress and material loss during transport, ensuring clean and stable operation.

The cement bulk tanker trailer can be customized in terms of tank capacity, material thickness, compartment layout, and axle configuration to suit different powder cargo types and operating conditions. Options such as discharge system design, air compressor matching, manhole and pipeline layout, and safety fittings can be adjusted according to local regulations and practical transport needs.


Product parameters.jpg

Loading Capacity

40CBM

Axle Weight Load

13T

Axle number

3

Axle Brand

FUWA

Suspension

Common mechanical

King Pin

2" or 3.5" traction pin

Dimensions (LxWxH)

13000*2500*4200mm

Support legs

28T

Wheel Rim

9.0-22.5

Wheelbase

7180+1310+1310mm

Steel Spring

10 pieces per axle

Tank body & end

St-37/4mm steel&6mm steel sheet Shape:V type

Engine

Diesel engine:weichai brand model:4102.44 KW

Discharge valve & pipe

4” disc valve&4” seamless steel tube

Air-charging system

2” main hole. 2” check valve.1.5” safe valve.0.4Mpa.gauge

Quadratic blow

1” diameter check valve

Discharge cover

2-4 sets of 100mm discharge valves

Landing Gear

Manual operating, Heavy duty landing gear  (Brand Optional)

Manhole cover

500mm manhole cover 2 sets with 2 breather valve

Accessories

1 Set standard tool box

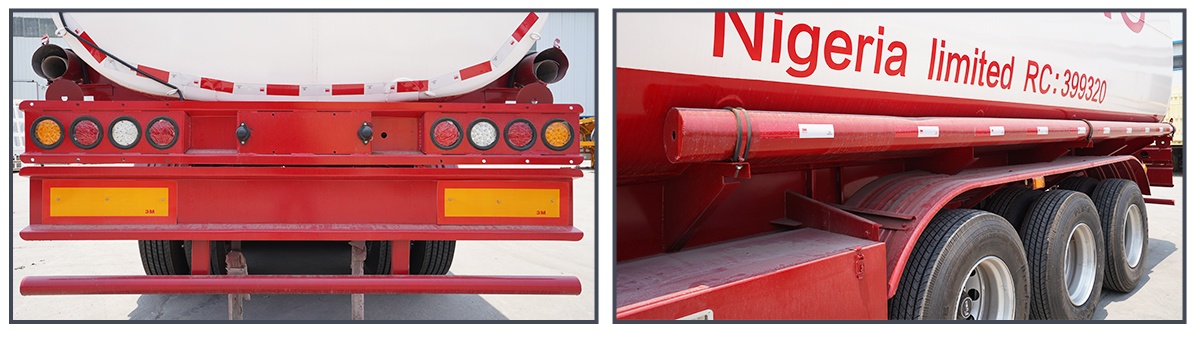

Light

Tail lamp with turn signal, brake light & reflector, side lamp etc.

Painting

1coat of anti corrosive primer,  twice coats of final paint

compressor

BOHAI brand 14M3

Tire spe.

12R22.5 Chinese brand

Number of Tire

12 pieces

Spare Tire Carriers

2 pieces

Main beam

The height of the beam is 500mm;Down plate is 16mm;Middle plate is 8mm.

Tank body

5mm steel plate, head and back head made of 6mm steel plate the shape can be column or TV square shape

Brake Chamber

Six big chamber( Brand Optional )

Brake system

Dual Line Brake system (ABS )

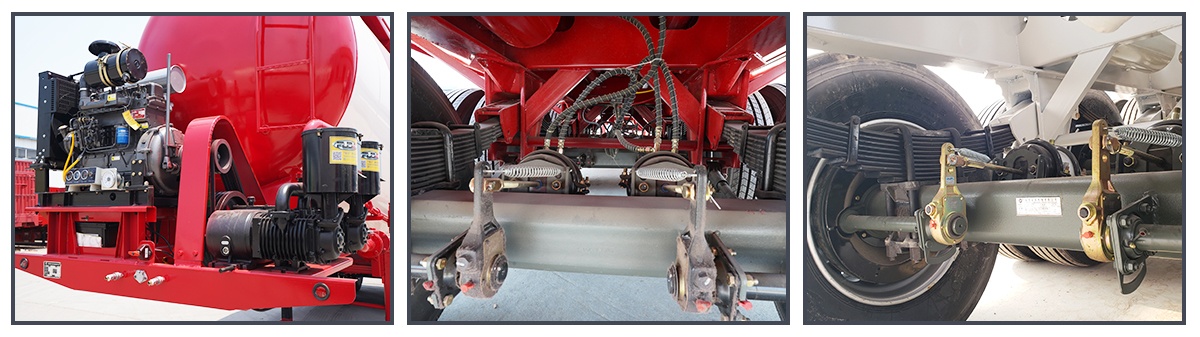

Product details.jpg

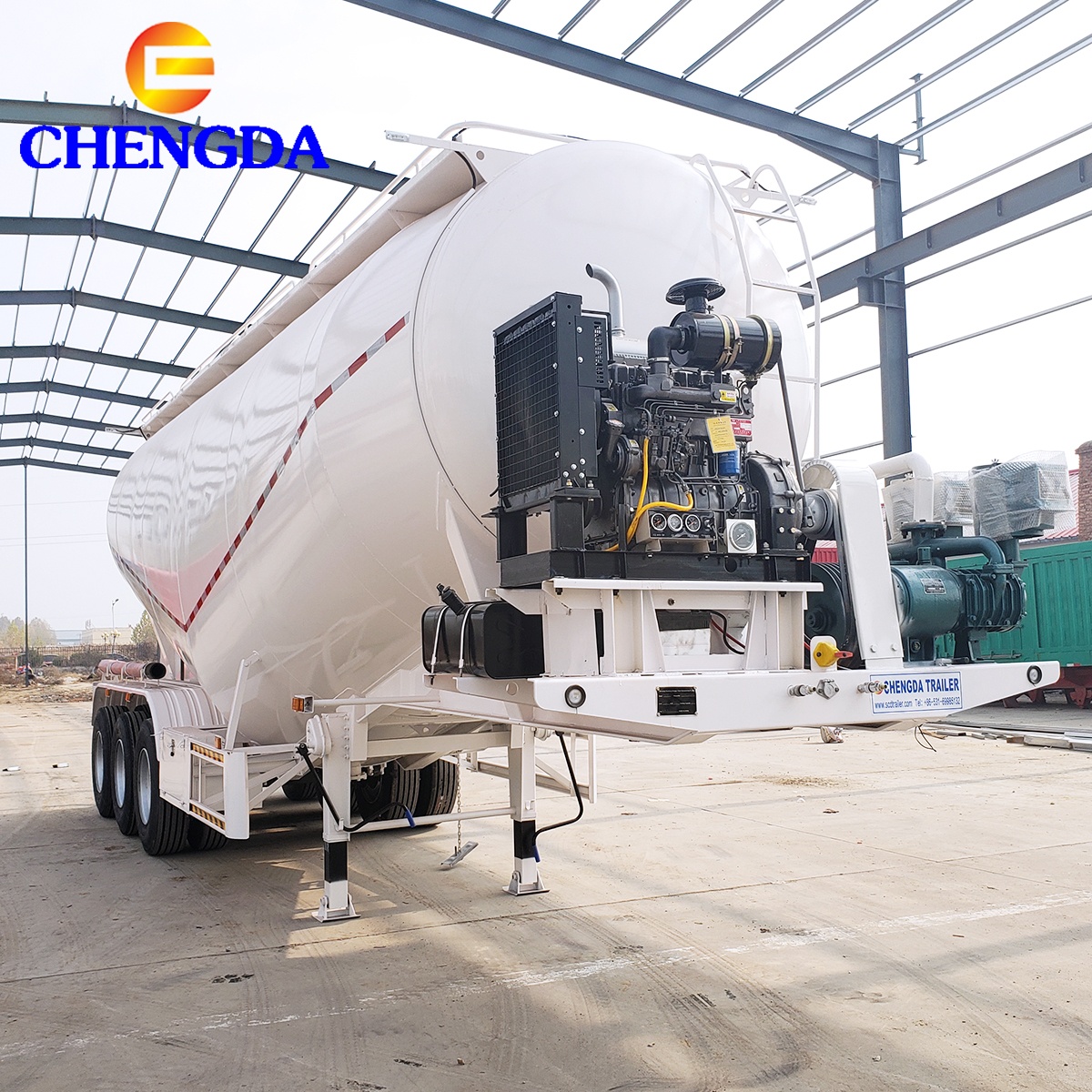

External Weichai 4100 engine and Wuhu 10.00 vehicle air compressor unit ensure sufficient air pressure when the vehicle is unloading, and the exhaust speed can reach 1.6 tons per minute.

Our Advantage:

1. Full load rate>98%

2. Residual rate <0.3%

3. Conveying height>15m suitable for most silos

4. Faster discharge >1.5ton/min to save fuel

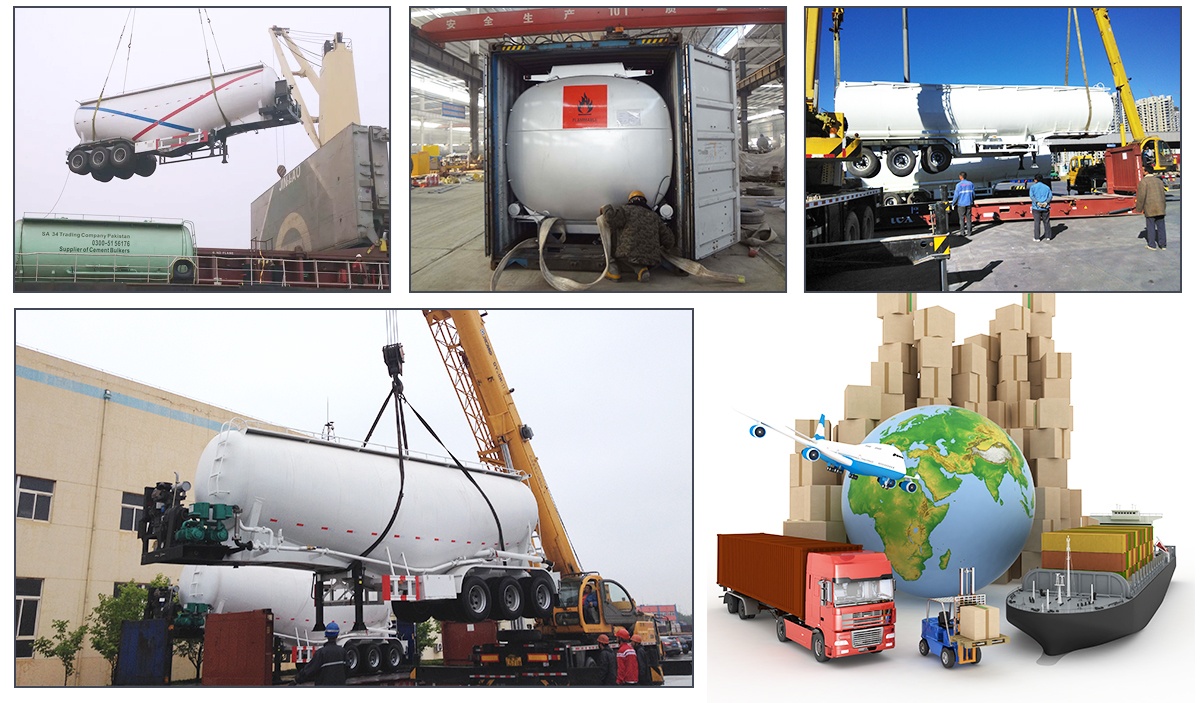

Packaging and transportation.jpg


The trailers and trucks will be transported by container or by bulk cargo ship.

We will arrange the most cost-effective transportation mode according to the quantity of products.
All trailers and trucks will be polished with wax before shipping.

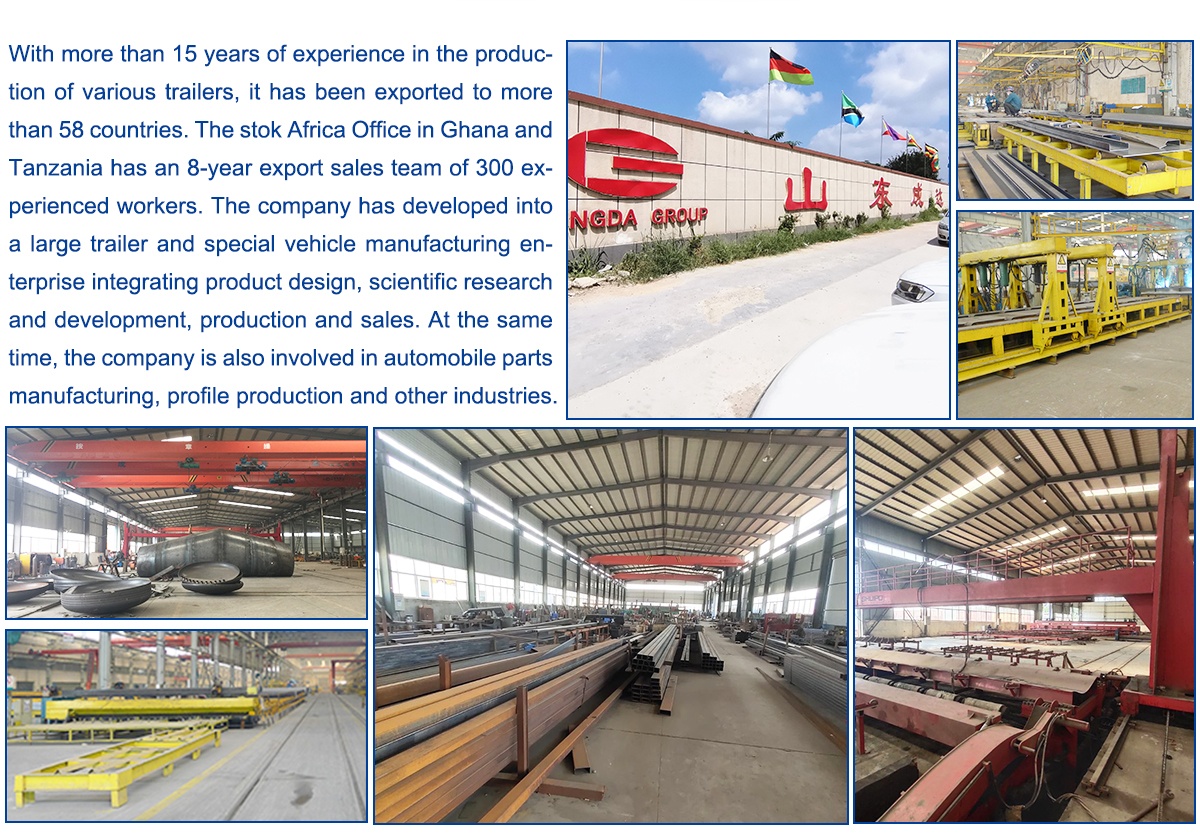

Factory display.jpg

1. We maintain stable inventory through rigorous quality inspection 2. All products come with a 24-month warranty + free after-sales technical support 3. Competitive factory direct prices (10%-20% lower than other suppliers)We also supply spare parts (original, OEM, and replacement) for all types of with 3% off and nice quality to ensure the trucks and trailers being in good working conditions. 4. Reply your inquiry in 12 working hours;24/7 online service 5.Welcome new and old customers to visit and guide our company! Our products are exported to many countries in Africa, Southeast Asia, and South America, and customers are very satisfied with our products and services. We are capable of solving any problems you may encounter. If you have any questions, please feel free to contact us; our professional sales team will provide you with the best solution.
