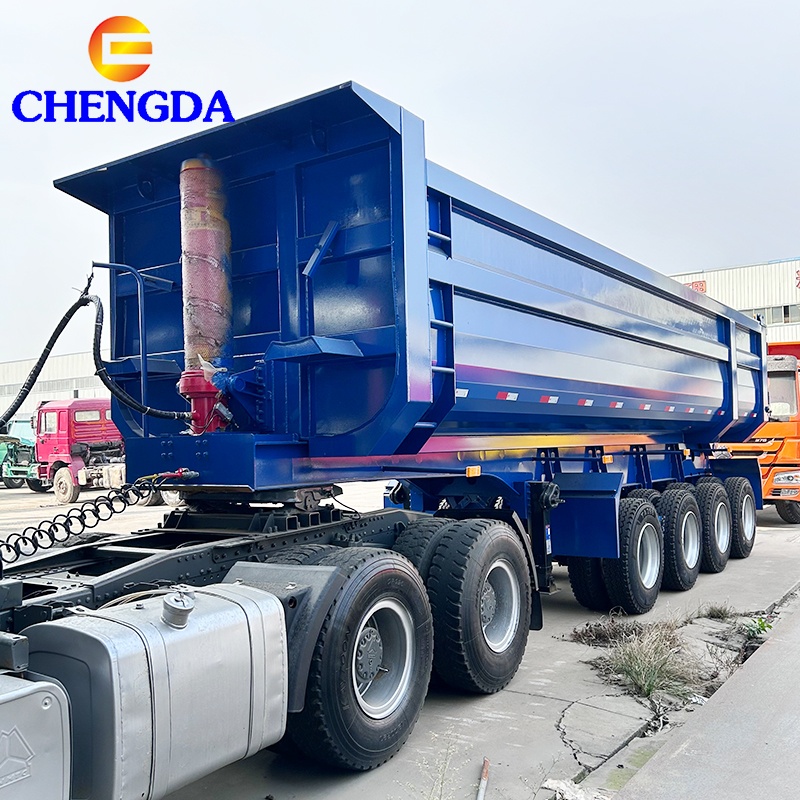

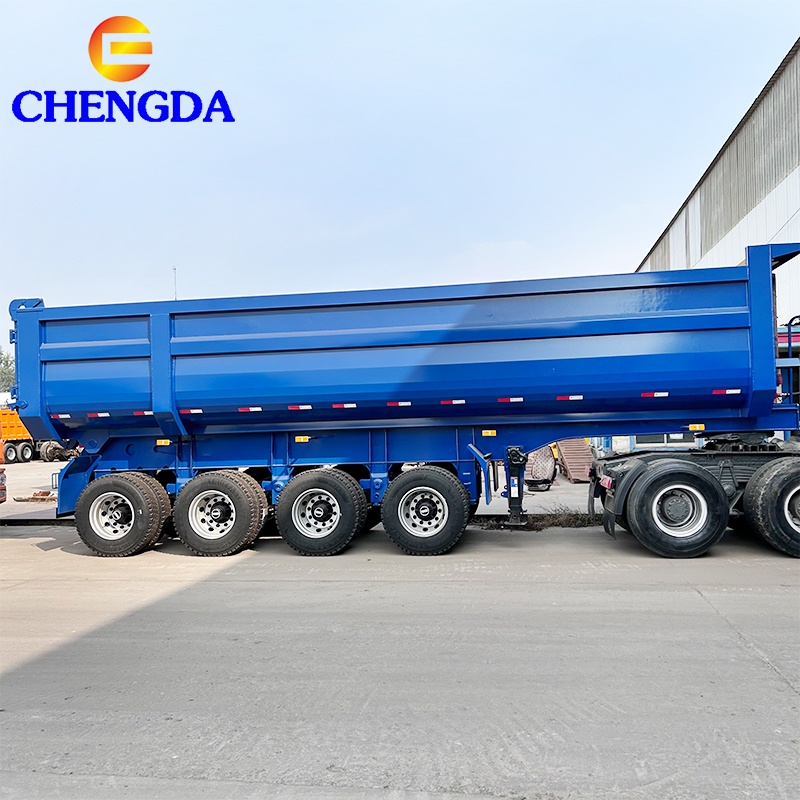

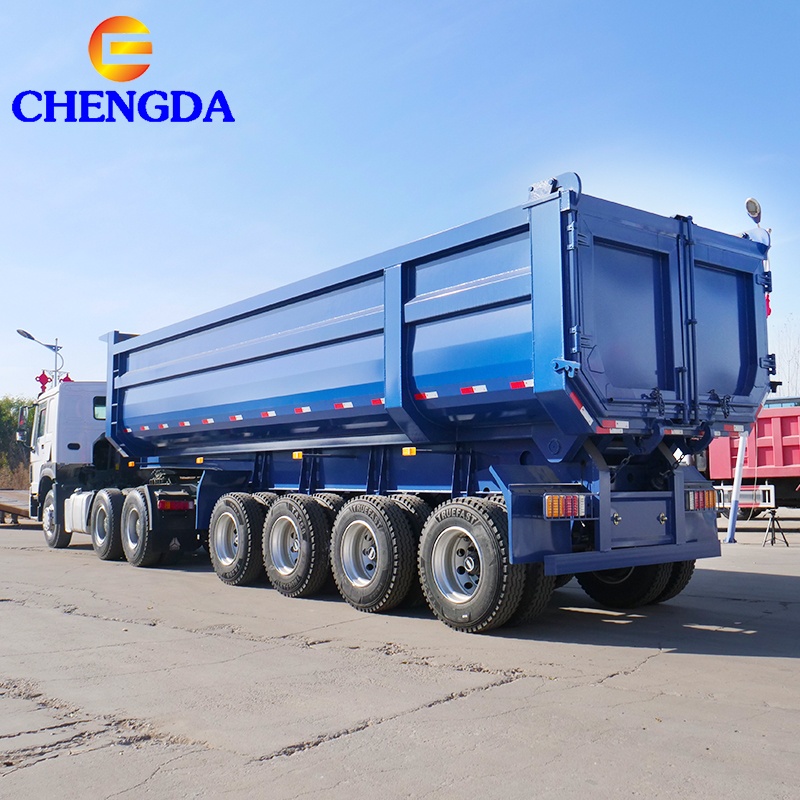

Dump Semi Truck Trailer U Type Rear Tipper Truck Trailer

heavy duty dump tipper trailer

Dump semi trailer adopt advanced design concept.For the tipper trailer box, we adopt high strength steel to make it durable when load the sand or small stones or rocks, especially under the off road condition.Rectangle Type or U Type Tanker Optional.Side Dump Trailer Also Available

Send Inquiry common.chatNow

Chat Now

Product Details

自卸半挂（详情页）_01.jpg Transport Sand Stone Hydraulic End Rear Dump Semi Truck Trailer U Type Rear Tipper Truck Trailer

The dump semi-trailer is an efficient and practical transportation solution widely used in construction, mining, agriculture, and other industries. It is specifically designed for transporting sand, gravel, soil, minerals, and other bulk materials. Equipped with a hydraulic system, the trailer can tilt its cargo box to facilitate quick unloading, significantly improving transportation efficiency while reducing labor costs.

Product name	Dump semi trailer
Size	9700mm2550mm1850mm(Size optional)
Loading capacity	30T-100T (load capacity optional)
Main beam	Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 18mm,width140mm;Middle Flange 14mm height 500mm;bottom flange20mm,width 140mm
Floor	8mm checkered plate
Side wall	Height 1600mm thickness 6mm
Axle	Fengbao, FUWA, BPW (Axle brand can be selected, and the number of axles can be 3 or 4)
Suspension	Mechanical suspension
Leaf spring	Leaf spring 10pcs9013mm
Tire	12R22.5 12pcs
Wheel rim	9.0-22.5 12pcs
Kingpin	2”/3.5” bolt-in /welded king pin
Landing gear	Two-speed, manual operating ,heavy duty landing gear 28T
Braking system	WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
ABS	Optional
Light	LED 8 side lights and 2 rear lights 2 width lamp
Painting	Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint
Accessories	One standard tool box、one spare tire carrier、one crank、one shaft head wrench、four side light、two rear light

Product Details.jpg

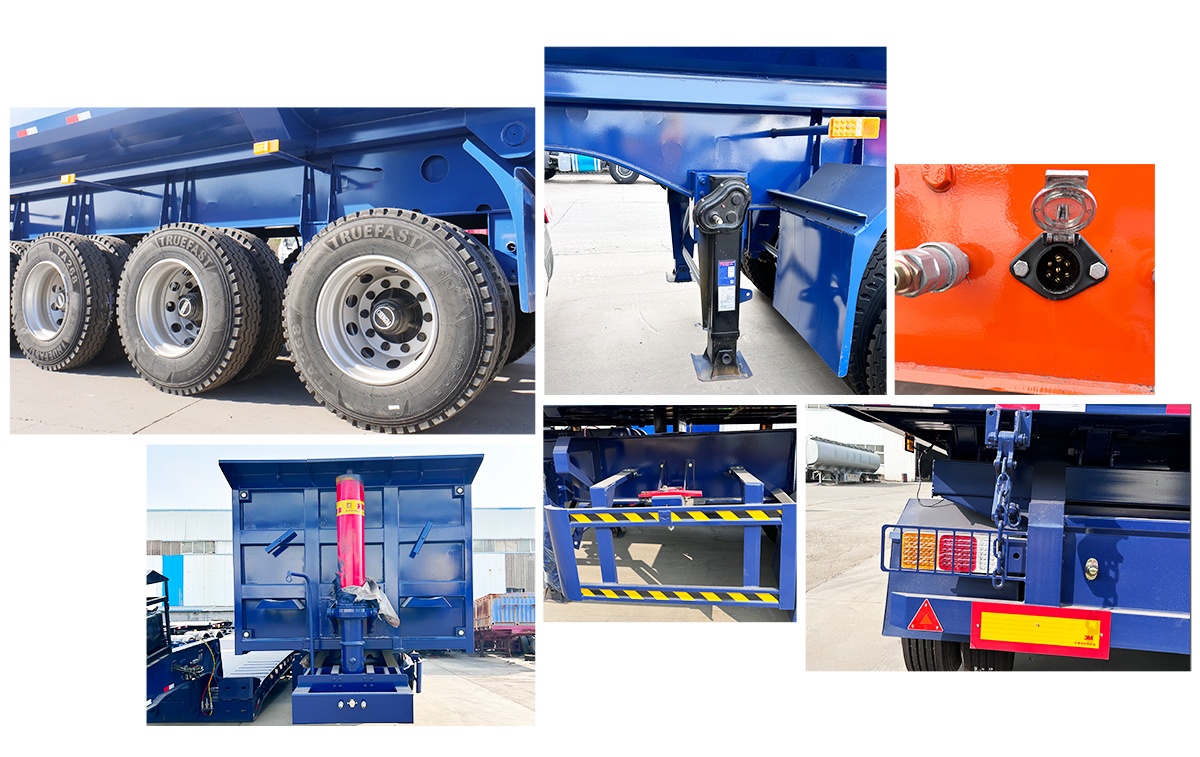

Hydraulic cylinder.The length can be adjusted to suit different working needs. By adjusting the fluid pressure in the hydraulic system, precise control of the hydraulic cylinder movement can be achieved, maintaining stability and reducing vibration and impact.)

28T linkage landing gear with multiple specifications can beequipped with different materials
Rear door auto fasten lock efficiency work,adjustable design keep suitable situation,easy maintenance and replace.
Double-layer beam, highhardness, high load and low weight
High-quality American-Geman axles can be equipped with FUWABPW
The automatic adjustment function adjusts the suspension system in real time to improve stability and reduce vibration and bumps.

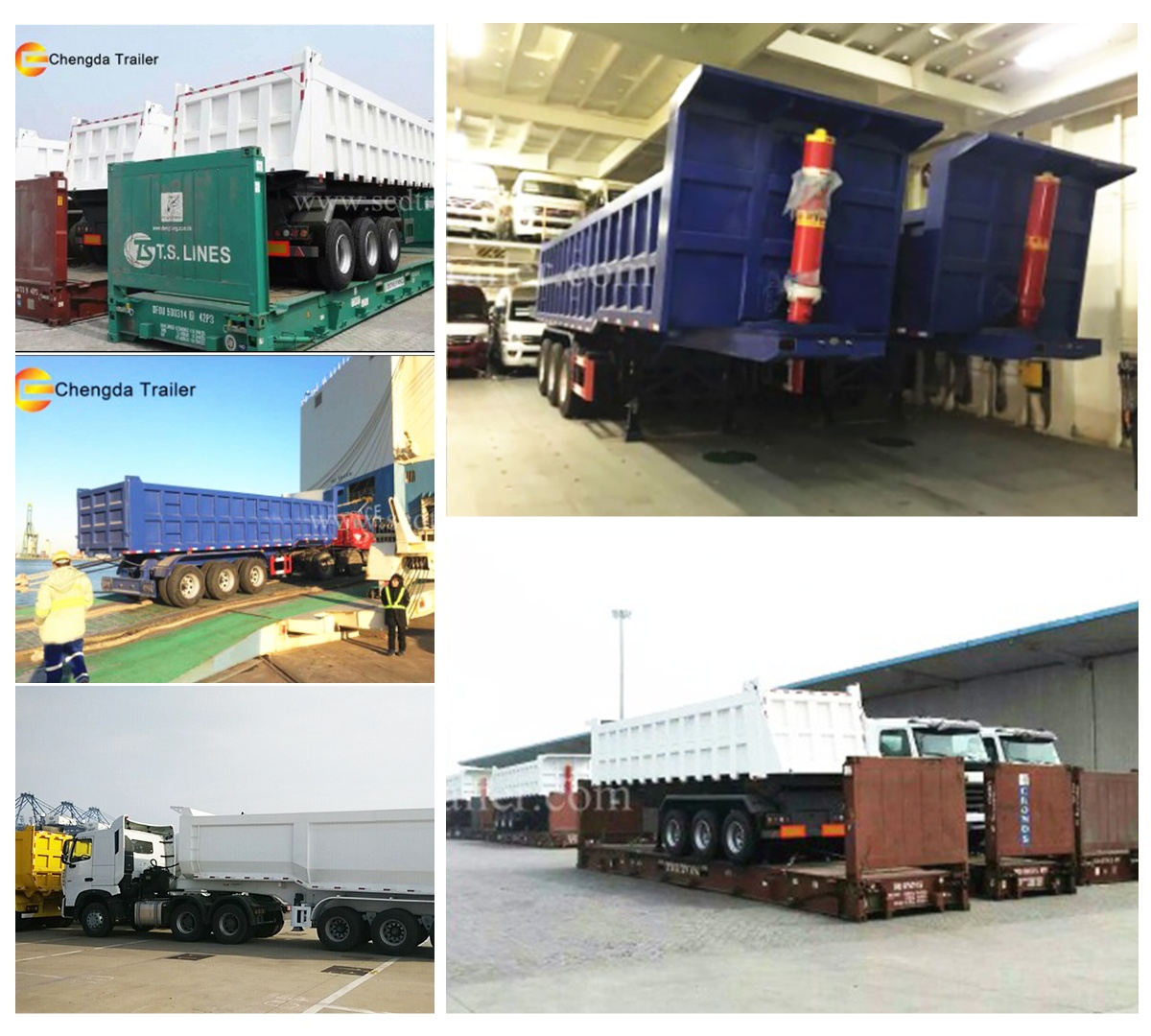

e are committed to providing efficient, reliable and timely delivery services to our customers around the world. Our well-established logistics network and partnerships with leading freight companies ensure a seamless shipping experience.

CHENGDA Group are a manufacturer with 18 years export experience of truck and trailers. Product quality is guaranteed.Any needs just contact us directly.We have a professional trailer design department , rich production experience, short delivery time. Our factory has passed ISO9001 quality system certification. Our cooperation can be ODM or OEM mode.
