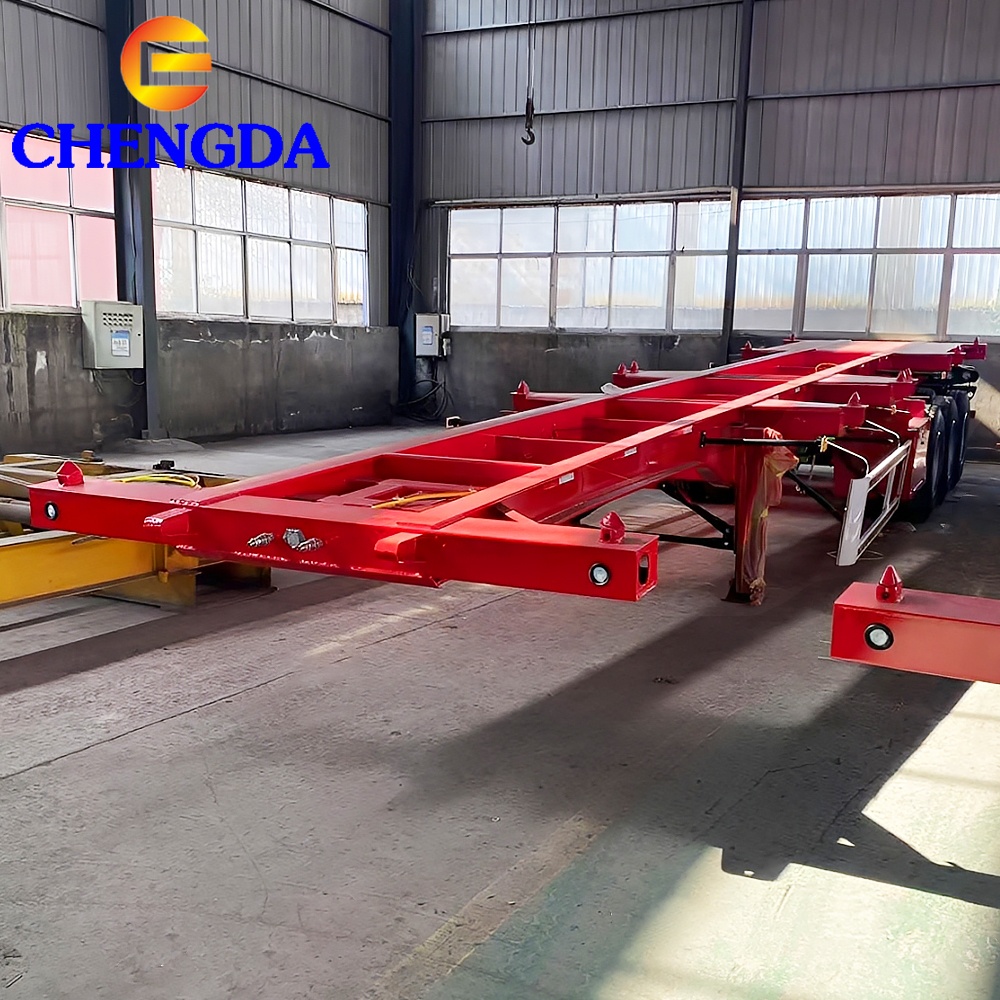

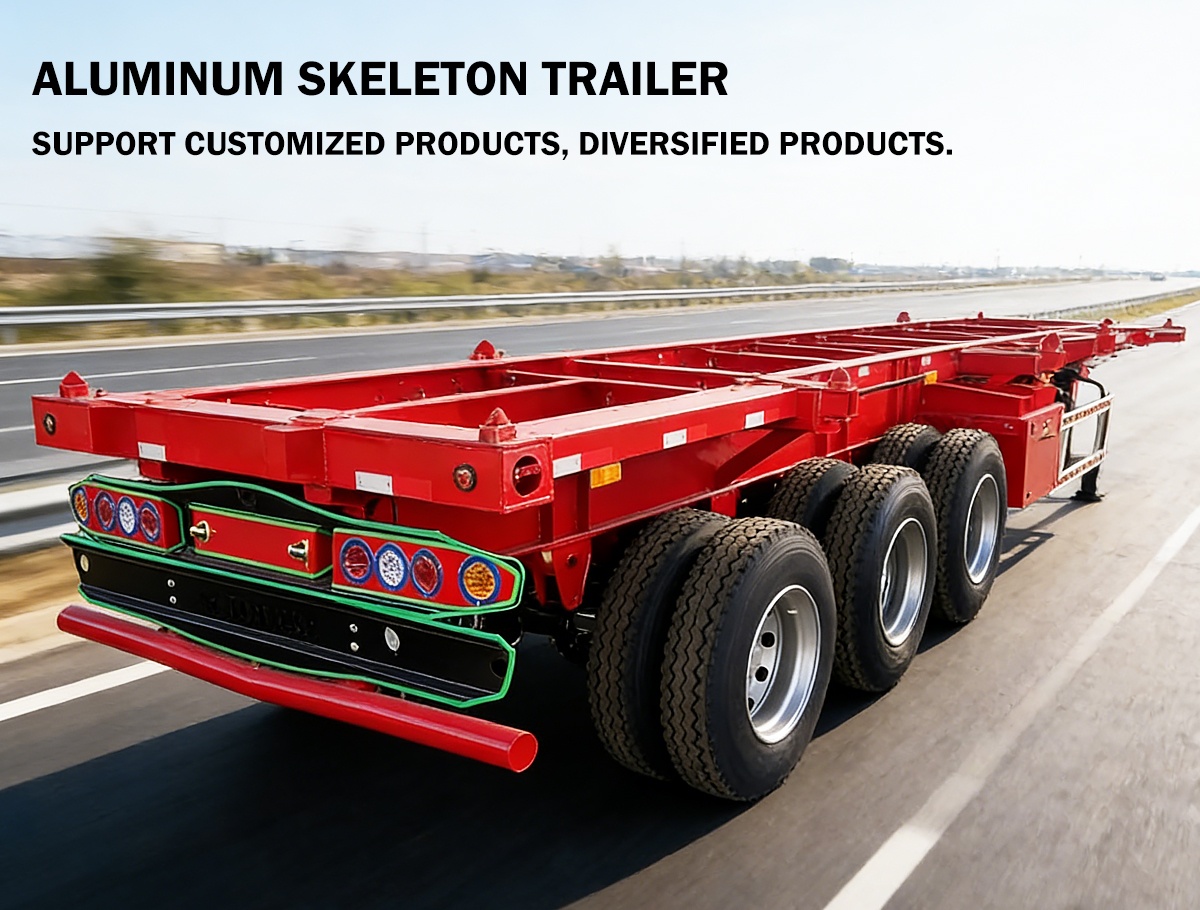

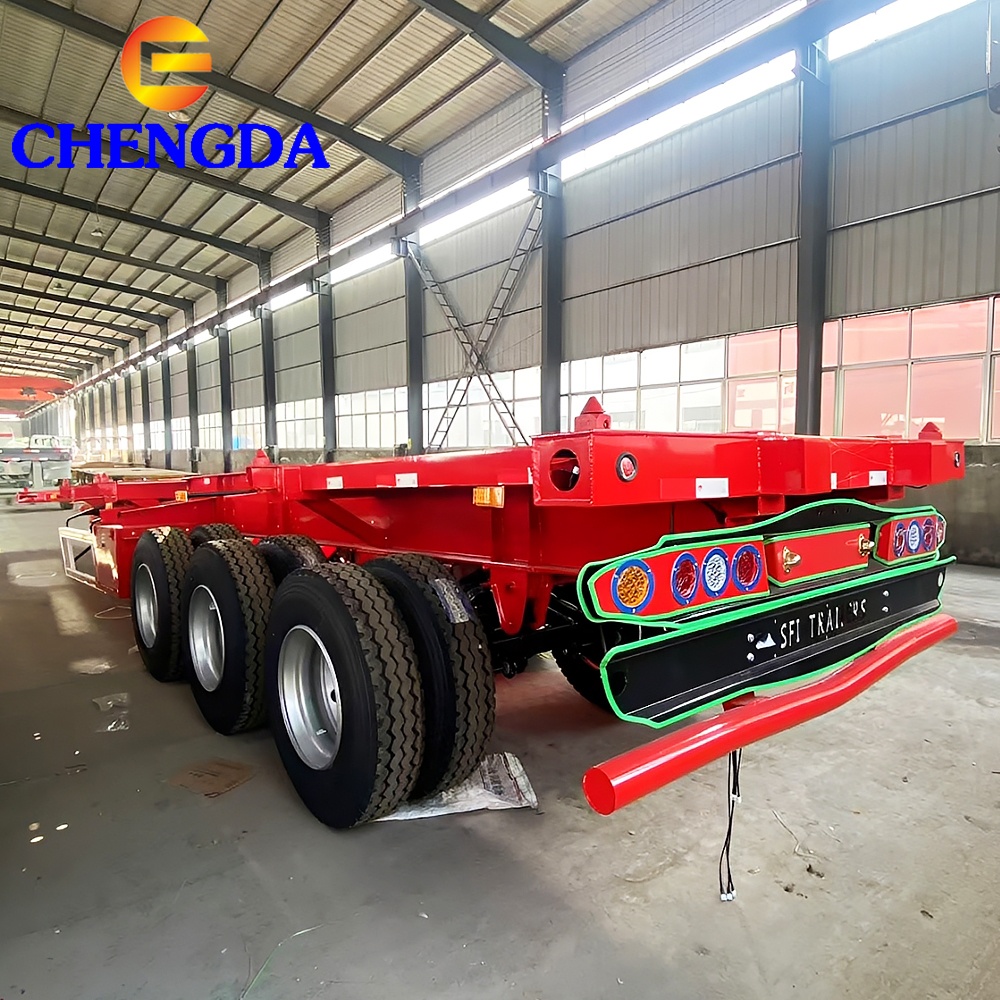

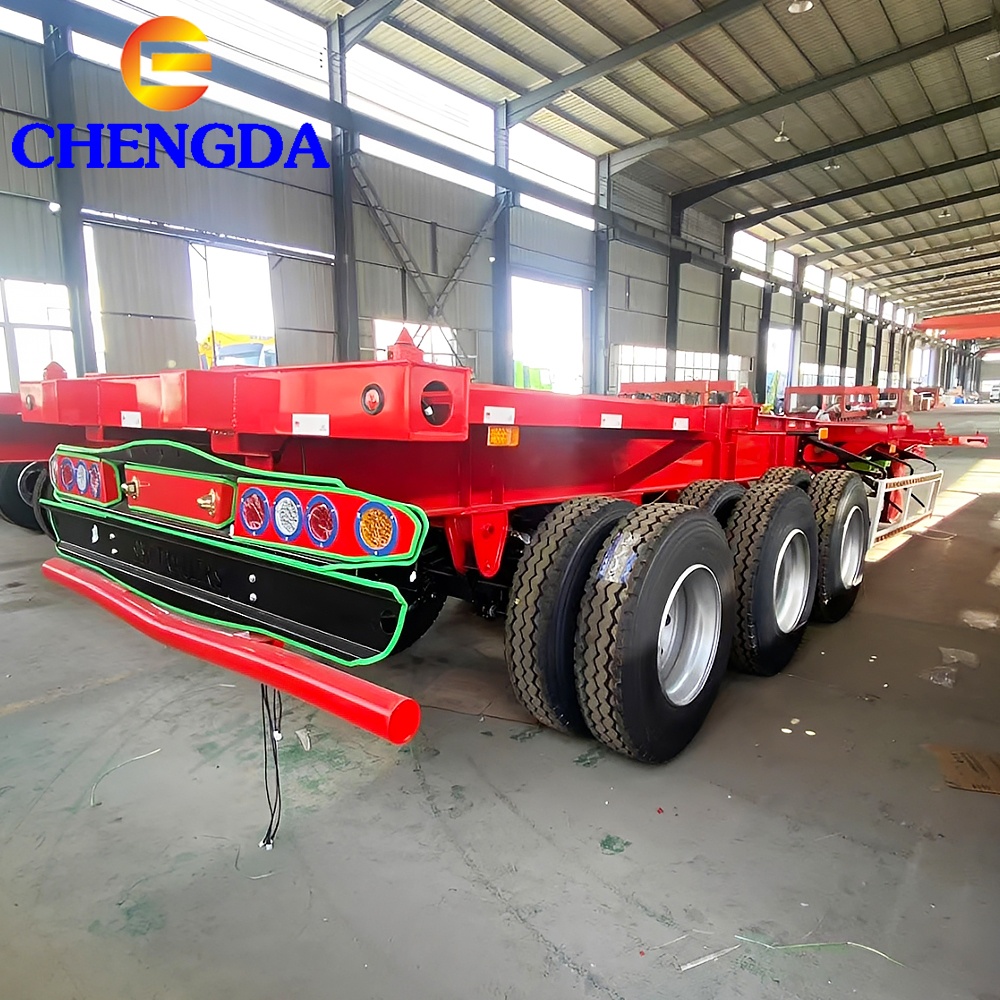

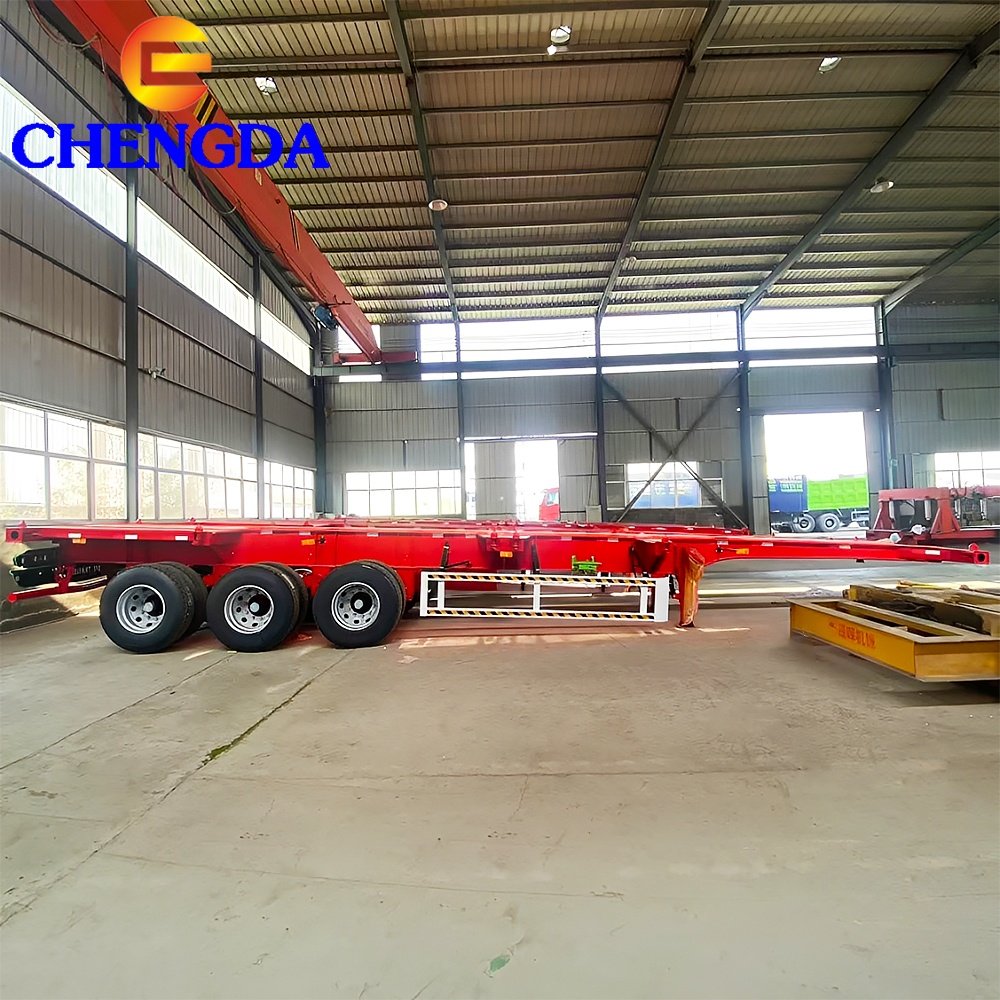

Heavy duty 3 axle 40 feet container chassis trailer 40ft skeleton skeletal semi truck trailer
We can provide all the models you need and support customization. Please leave your inquiry if you have any questions.

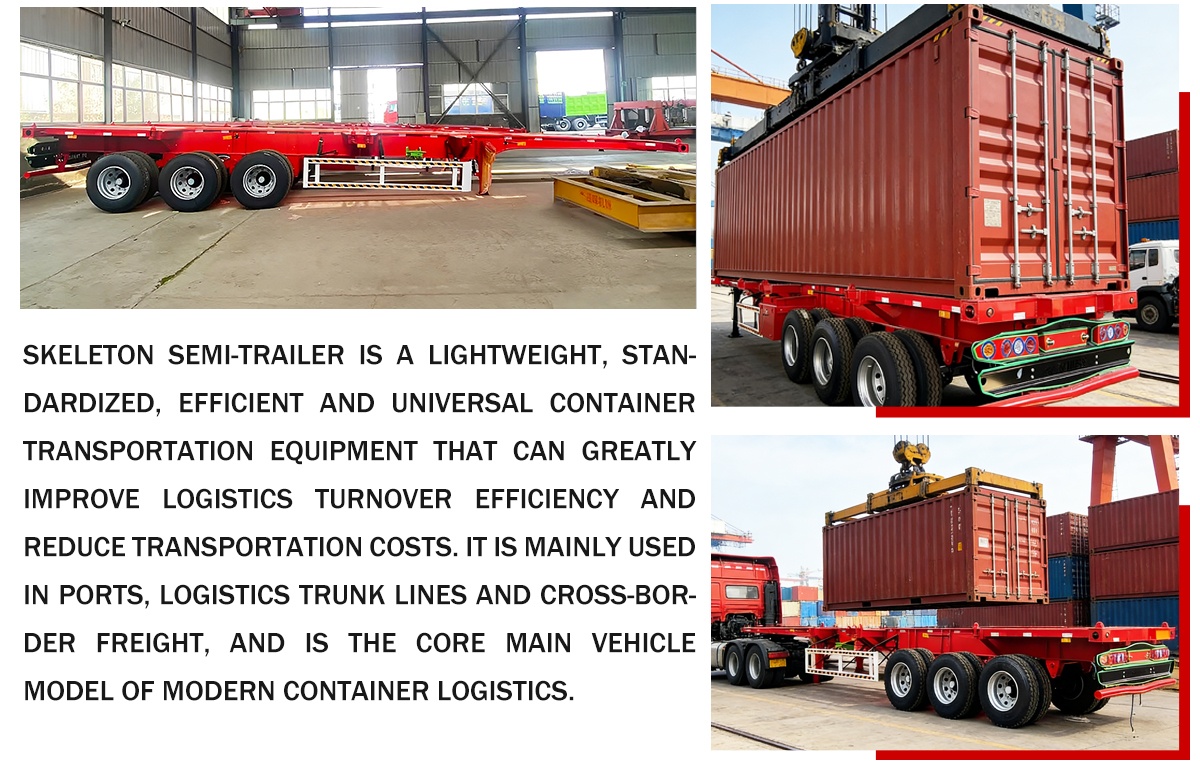

Skeletal trailer is mainly used in ships, ports, routes, roads, transit stations, bridges, tunnels, matching multimodal logistics system.
Specifically for a variety of container transport, customers can choose according to their own needs to change how many locks that may, all the accessories have been 20 years of experience in the use supplier of choice, long-term repeated use, with sufficient strength .
container chassis trailer fast loading and unloading, and can be directly and easily from one vehicle to another vehicle facelift.
20FT Skeleton Semi Trailer | 40FT Skeleton Semi Trailer | 45FT Skeleton Semi Trailer |
Brand: Vehicle Master | Brand: Vehicle Master | Brand: Vehicle Master |
2 Axles/3 Axles | 3 Axles/ 4 Axles | 3 Axles/ 4 Axles |
20ft Container Loading | 1*40ft/2*20ft Container Loading | 1*45ft/1*40ft/2*20ft Container Loading |
Loading Capacity: 20-50 Tons | Loading Capacity: 30-80 Tons | Loading Capacity: 30-80 Tons |
Type: Gooseneck or Tandem | Type: Gooseneck or Tandem | Type: Gooseneck or Tandem |
Main Bean |
Material: Q345/T700 | Material: Q345/T700 | Material: T700 |
Upper Plate Thickness: 12mm | Upper Plate Thickness: 14mm | Upper Plate Thickness: 10mm |
Middle Plate Thickness: 6mm | Middle Plate Thickness: 6mm | Middle Plate Thickness: 5mm |
Lower Plate Thickness: 12mm | Lower Plate Thickness: 16mm | Lower Plate Thickness: 10mm |
Height: 500mm | Height: 500mm | Height: 420mm |
Dimension |
L*W*H: 7000mm*2480mm*1560mm | L*W*H: 12400mm*2480mm*1580mm | L*W*H: 13950mm*2500mm*1600mm |
Axle |
2/3 Axles *13 Ton VEHCILE MASTER/FUWA/BPW | 3/4 Axles *13 Ton VEHCILE MASTER/FUWA/BPW | 3/4 Axles *13/16 Ton VEHCILE MASTER/FUWA/BPW |
Tire |
12R22.5 (8/12 Pieces) Linglong/Triangle/Double Coin/Bridgestone | 12R22.5 (12/16 Pieces) Linglong/Triangle/Double Coin/Bridgestone | 12R22.5 (12/16 Pieces) Linglong/Triangle/Double Coin/Bridgestone |
Rim |
9.00*22.5 (8/12 Pieces) Steel/Aluminum | 9.0*22.5 (12/16 Pieces) Steel/Aluminum | 9.00*22.5 (12/16 Pieces) Steel/Aluminum |
Leaf Spring |
90mm*13mm*10 Pieces 90mm*16mm*10 Pieces | 90mm*13mm*10 Pieces 90mm*16mm*10 Pieces | 90mm*13mm*10 Pieces 90mm*16mm*10 Pieces |
King Pin |
#50 (2")/#90 (3.5") JOST/Other Brand | #50 (2")/#90 (3.5") JOST/Other Brand | #50 (2")/#90 (3.5") JOST/Other Brand |
Landing Gear |
28 Tons Two Speed JOST/Other Brand | 28 Tons Two Speed JOST/Other Brand | 28 Tons Two Speed JOST/Other Brand |
Twist Lock |
4 Sets | 12 Sets | 12 Sets |
Painting |
Electrophoresis Painting | Electrophoresis Painting | Electrophoresis Painting |

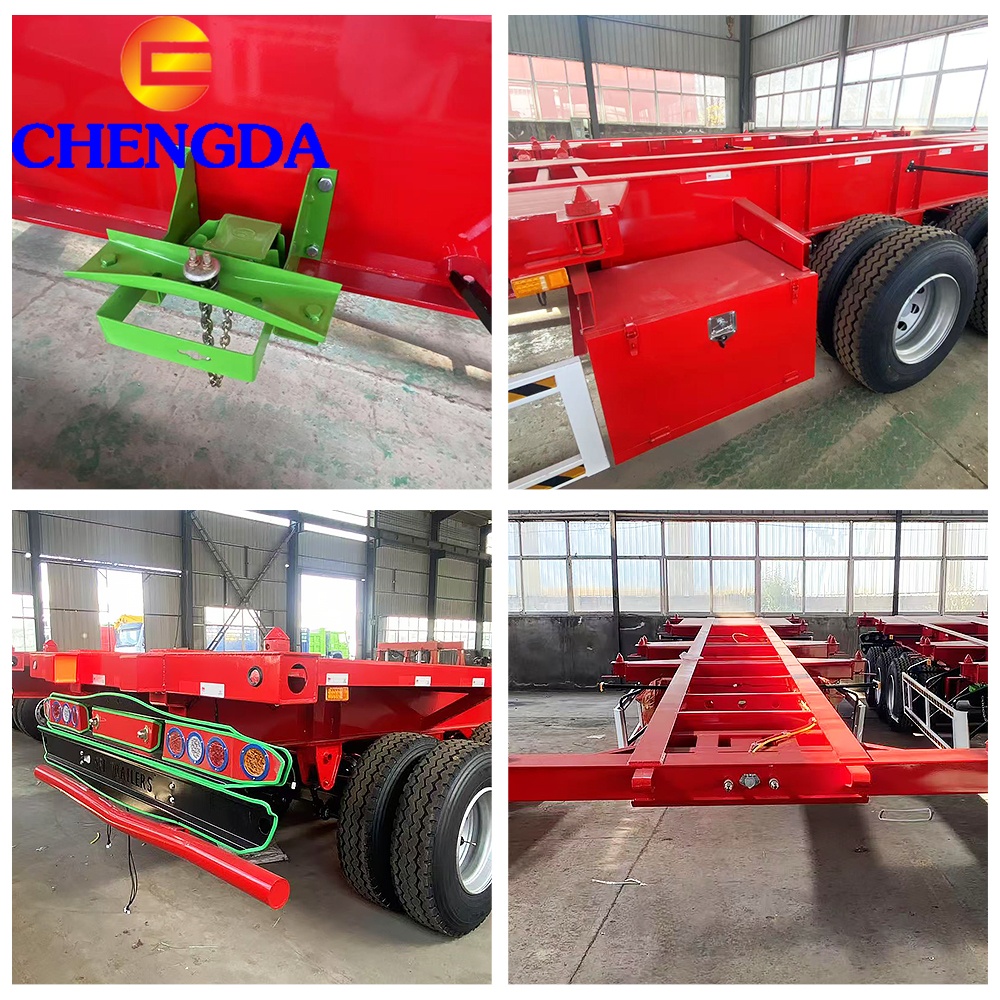

lamps are equipped to prevent short circuits and ensure the safety of vehicle transportation at night

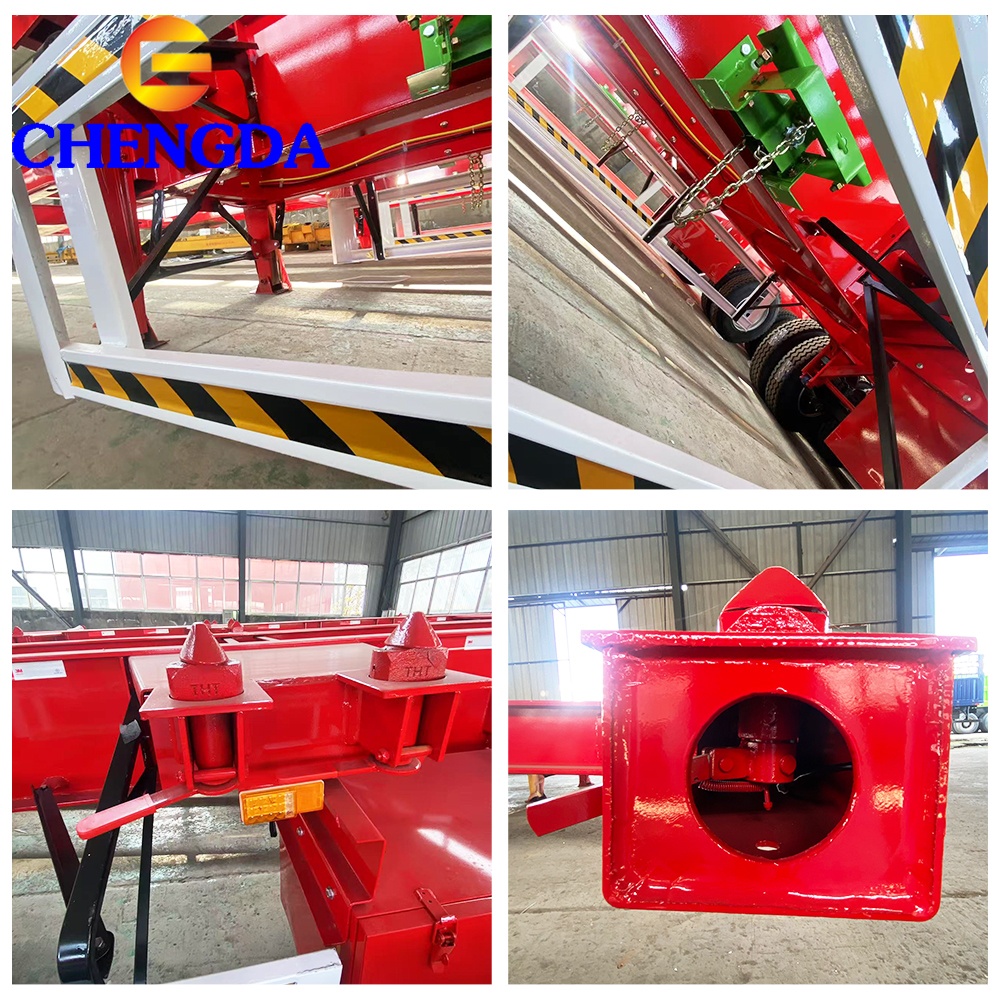

Vehicle Master's twist locks are durable with unique design,which ensures the stability of containers and ease of loading and unloading.
High quality tire brands such as Double Coin/Linglong/Michelin Triangle/Bridgestone can be optioned for the best performance.
Integrated advanced low-alloy axle beam with no welding points;strong capacity and high strength; axles can be free of maintenance up to 3 years or 400,000 kilometers.
Vehicle Master or JOST landing gear can be optioned made in aluminum or steel; designed to work under both high and low temperature in the range of -30C to 120 C.
All the connectors of electrical and gas circuits are made of copper with metal seal so there will be no rust or air leakage.

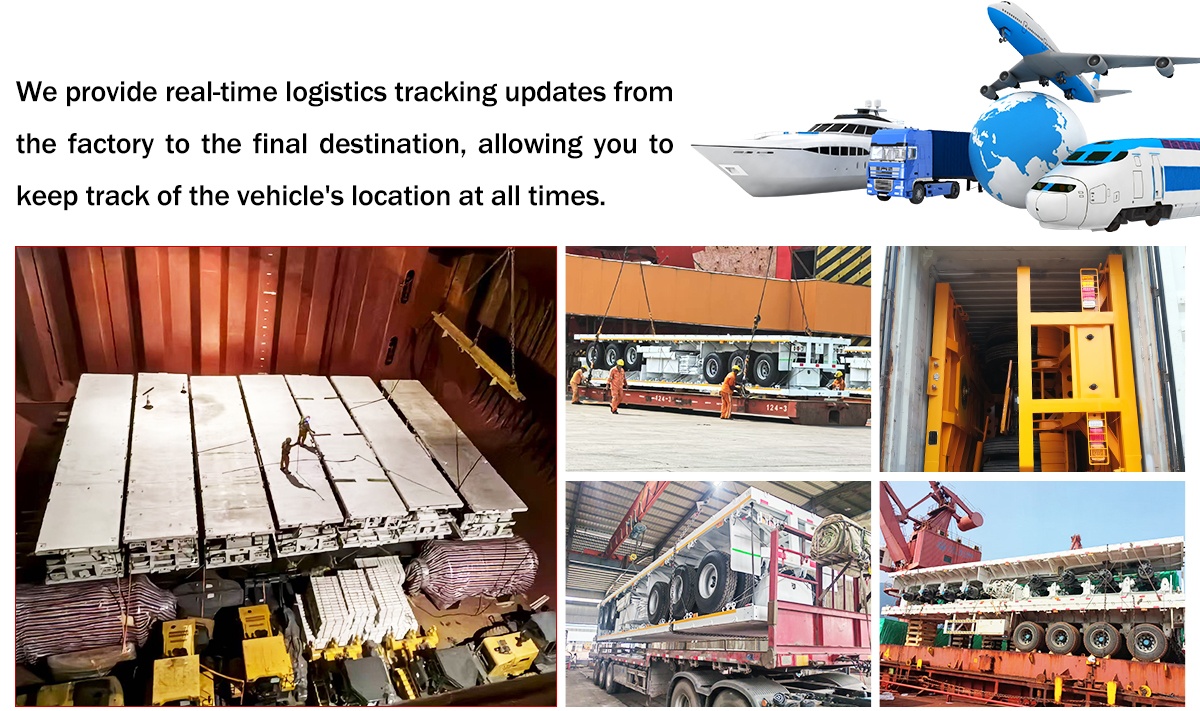

The trailer is waxed before it is packed to prevent seawater from corroding the trailer surface.
