Side Wall Stake Semi Trailer

The sidewall cargo semi-trailers are used to load various products and materials such as sand, bags, poultry and more. There are also some bulk cargoes that are very widely used in the transportation industry.

Send Inquiry common.chatNow

Chat Now

Product Details

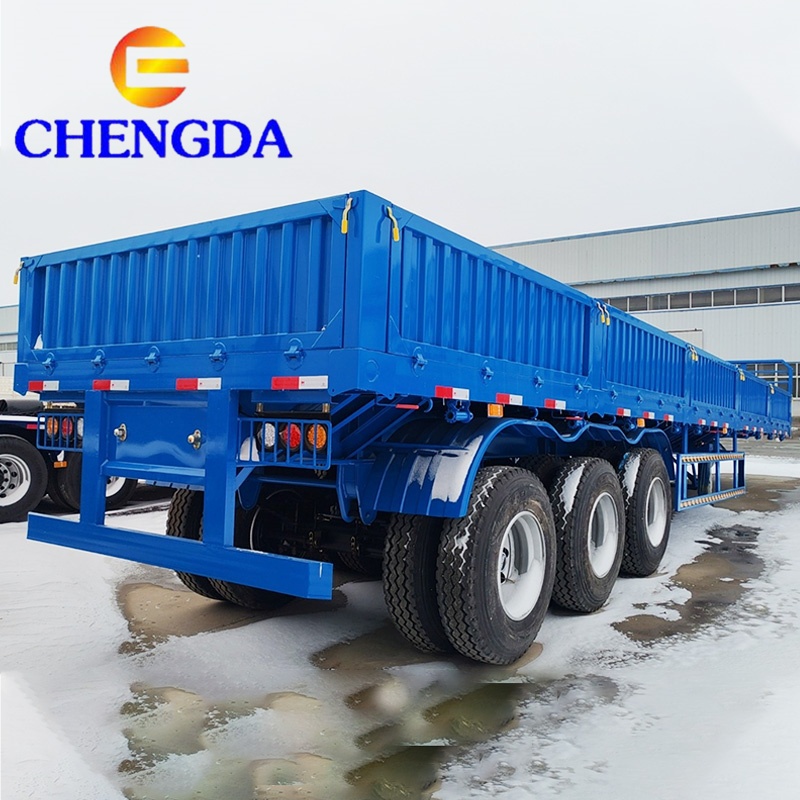

Good Price Customizable Dimension 3 4 Axles side wall sidewall stake fence cargo semi trailer

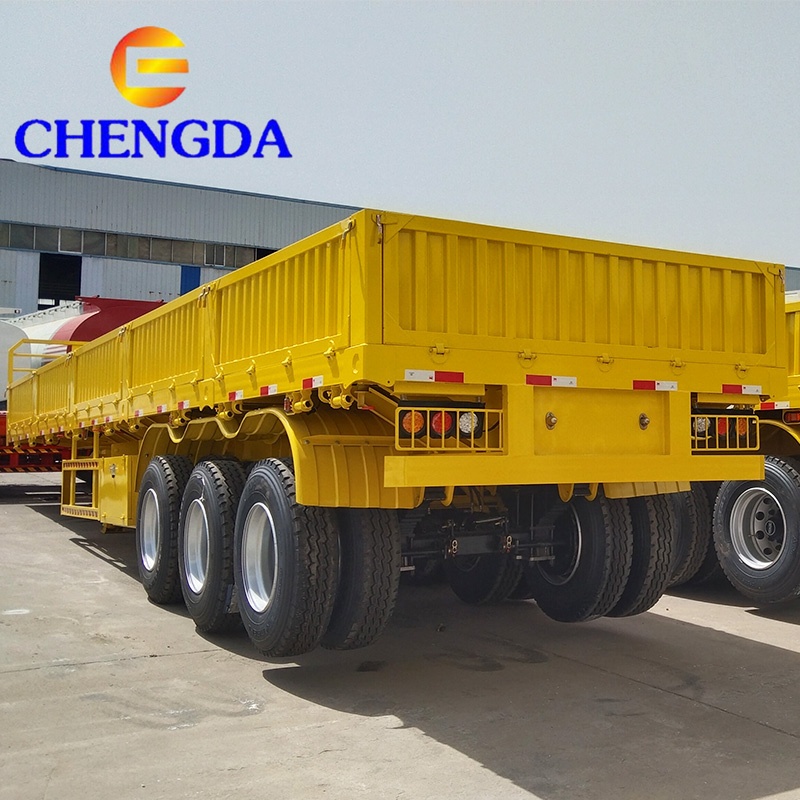

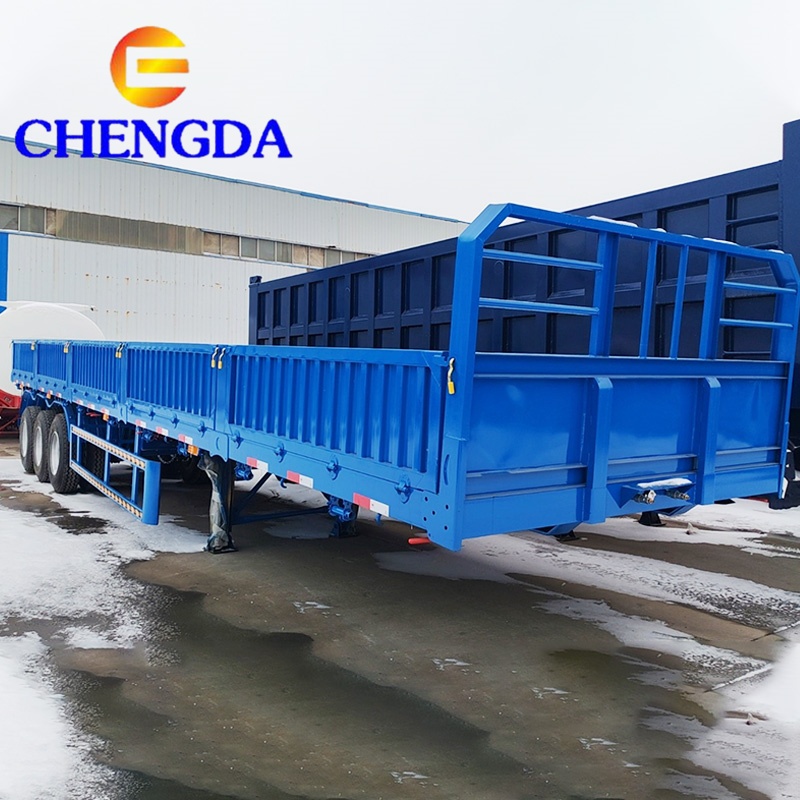

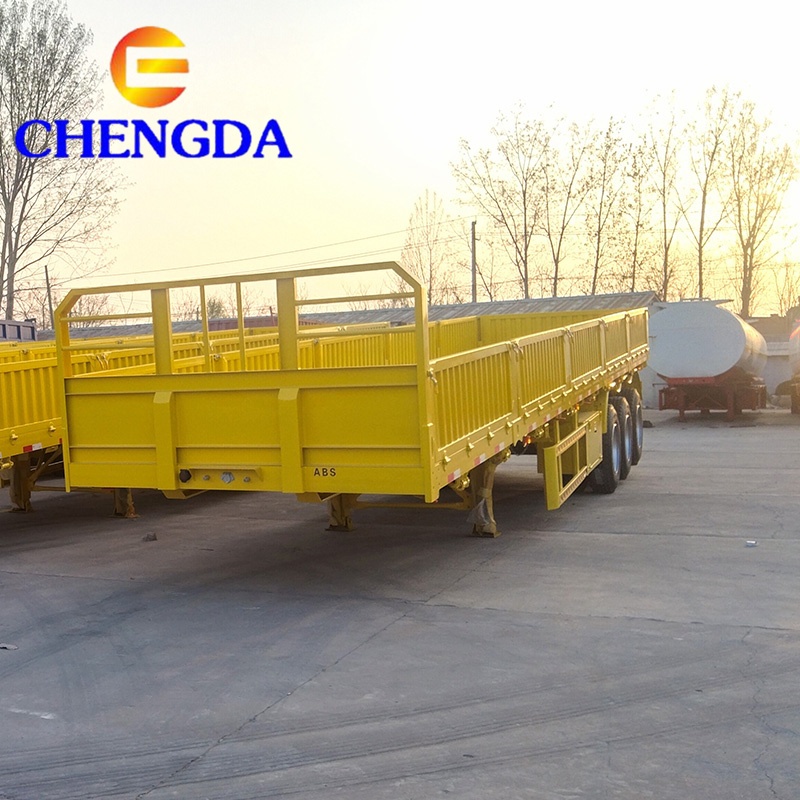

Side-wall semi-trailer is mainly used for medium and long-distance transportation, which can transport bulk cargo, sand and gravel, grain, steel, wood and various agricultural products. Trailers can be designed as two-axle, three-axle, four-axle or series-connected side-wall semi-trailers. These types can be customized according to customers' needs. The side wall of the trailer can be removed, and containers or other medium-sized equipment can be transported after removal, which is very practical.

Type	Fence semi-trailer
Specifications	Loading capacity	2 Axle	8
8000-17500(size can be customized)	20/40ft 20-30 ton	3 Axle	12
	20/40 ft 30-60ton	4 Axle	16
	20/40ft 60-80 ton	5 Axle	20
	20/40ft 100 ton
Total height	3000mm or 2750mm
Height of breast board	800mm(Breast board)+100mm(gap)+600(fence) or 800mm(Breast board)+50mm(gap) +400(fence)
Dimensions(LxWxH)	6500 to 17500mm x 2500mm-2550 x 1500mm-4000mm
Axle and Brand	3 axle,13T/16T/18T Leitewei , (2/4 axle,fuhua/BPW to choose)
Tire brand	12r22.5 (Chengshan, zhaoyang and other 3-Pack tires)
Axle spacing	1310mm
Tare weight	4tons to 8 tons
Rims	8.5-20, 9.0-20
Brake System	Two wire pneumatic braking system with WABCO emergency relay valve
Plate spring	Ten pieces 13mm(widen)
Suspension System	Heavy machinery suspension(widen) / air suspension
Main Beam	Height 500mm Q345 carbon steel,thickness 10mm(height 530 550 580 Optional)
Side beam	16Channel (20/30 Channe lOptional)
Up and down the wing	Upper16mm,lower18mm Middle web10mm
Container twist lock	4/8/12 Optional
Kingpin	2' or 3.5' interchangeable,(50.mm-90mm interchangeable)
Landing Gear	28 Tons ,Two speed manual （Yost or fuhua Can be choose）
Electrical System	1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard
Lights and Reflectors	Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Packing	Polish with wax before shipping
Color	All colors can be customized

Twist Lock

If you have shipping container requirements you should inform us in advance, we will provide you with 12 sets of twist locks.

Anti-Tire abrasion Suspension

Specially designed anti-Tire abrasion suspension system, Prevent tire offset after loading, maximally avoid tire abrasion. Meanwhile, Easy to disassemble and maintain.

Brake System

T30/30 Spring brake chamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.

Landing Gear

JOST or Wosheng landing gear can be optioned made in aluminum or steel; designed to work under both high and low temperature in the range of 30℃ to 120℃.

Axle

BPW/FUWA/Chengda Axle optional. Integrated Advanced Low-Alloy Axle Beam, Whole Axle Beam No Welding process. Strong Carrying Capacity and high bending Strength. Axle maintenance-free could reach 3 Year/400,000 kilometers.

Side wall

The Height is 400-1200mm for your choose. Weld by automatic corrugated plate welding robot, the quality is good, the welded seam is beautiful, the side wall strong and durable.

Diamond plateform(Non-Slip)

3mm/4mm/5mm for your choice , it depends on the loading capacity of trailer.

栏板半挂（详情页）_11.jpg Many customers use container shipment, which has low transportation cost and short transportation time. But the bad thing is that the rear of the side wall semi trailer needs to be composed.Some customers are bulk freighter or ro-ro ships.

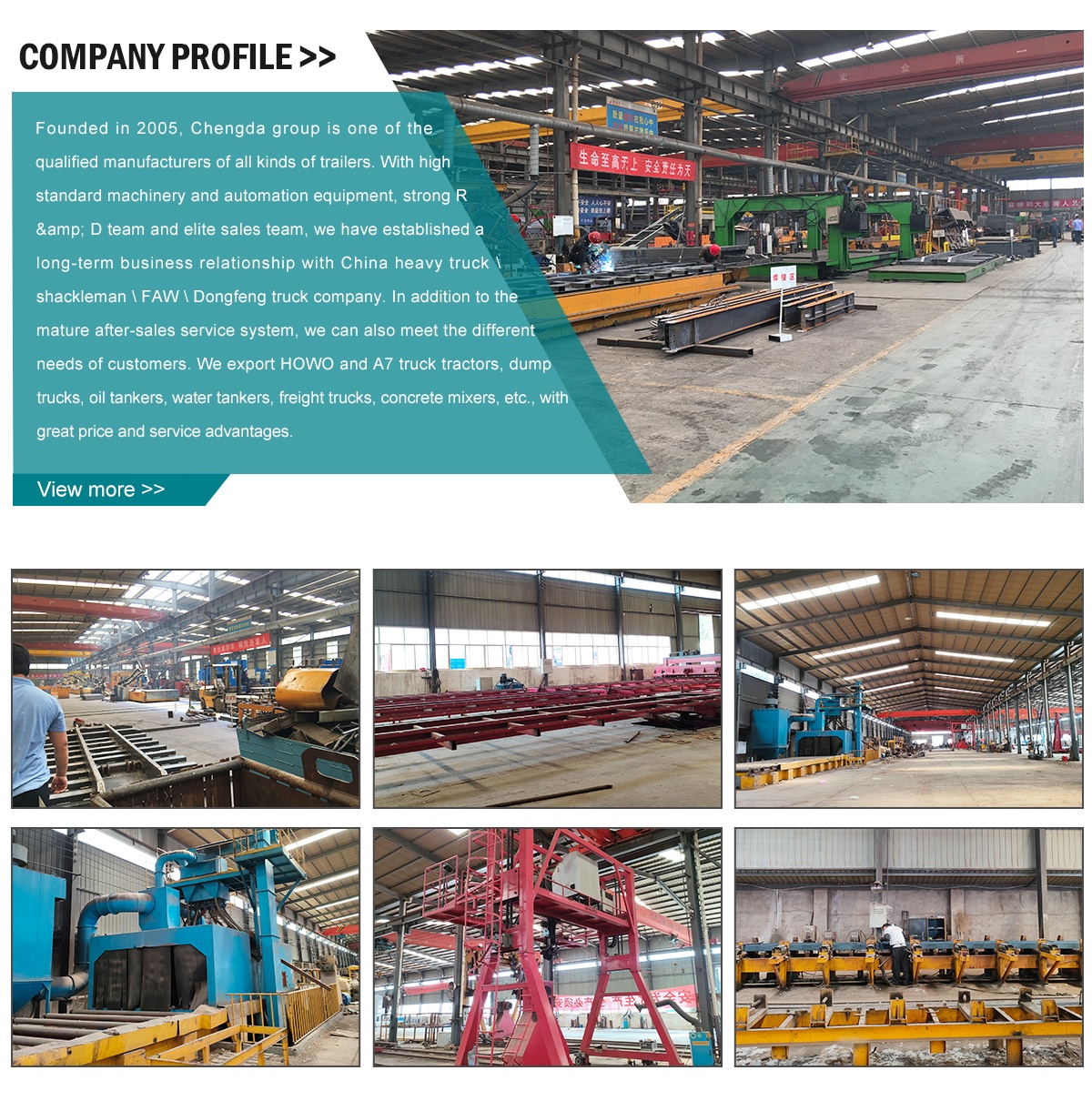

Our factory commit to strict quality control and thoughtful customer service, our experienced staff can discuss your requirements at any time to ensure your full satisfaction. We not only want to be perfect in appearance, but also pursue the delicacy of detail. We have advanced modern equipment, strong technical force to ensure customer satisfaction of products and timely delivery.
