Flatbed Semi Trailer

Flatbed trailers are an efficient vehicle widely used in the logistics and transportation industries, especially suitable for transporting large equipment, construction materials, mechanical equipment and other heavy goods.

Send Inquiry common.chatNow

Chat Now

Product Details


2/3/4 Axles Flatbed Container Transport Truck Trailers 20ft 40ft 45ft Container Flat Bed Semi Trailer

Product display.jpg

*Carrying capacity: Flatbed semi-trailers have excellent carrying capacity, and their sturdy chassis and high-quality materials ensure safety and stability during transportation.

*Versatility: The open design of flatbed semi-trailers enables them to adapt to various types of cargo transportation needs, which can be safely loaded with simple fixings. *Convenience: Flatbed semi-trailers are usually equipped with adjustable support legs and flexible connection systems, which facilitate quick
loading and unloading of cargo and connection with tractors

Product Application.jpg

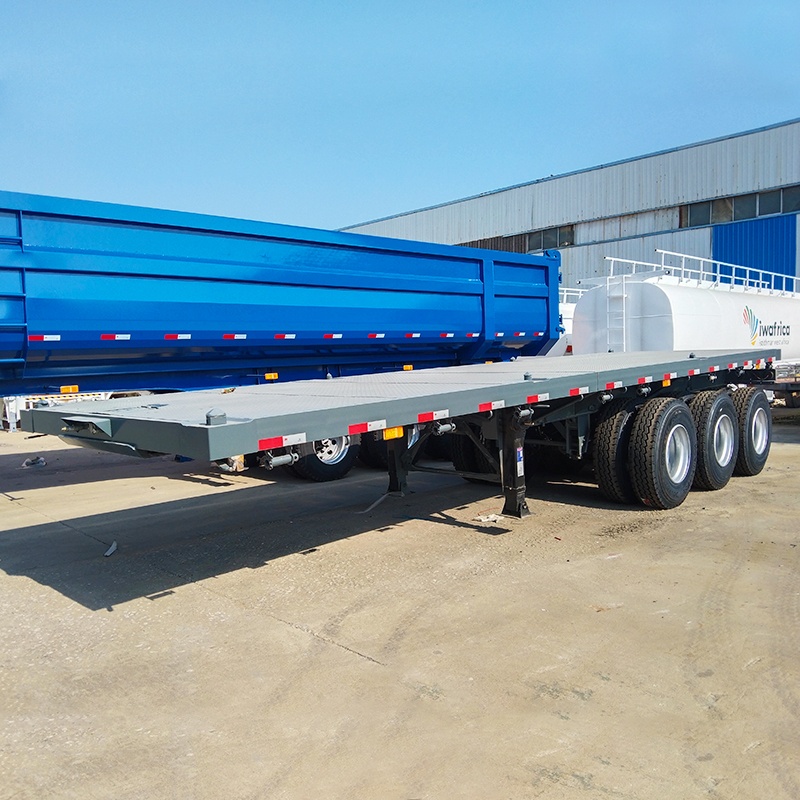

These new 3-axle flatbed semi-trailers handle 20/40/45ft containers and bulk cargo with ease.Built tough for durability, they boost efficiency, cut downtime, and help you move more—faster.A smart investment that makes your business thrive.

Product parameters.jpg

Type	Flat semi-trailer
Specifications	Loading capacity	Axle	Number of tires
12500mm(size can be customized)	20/40/45/48/53ft 20-30 ton	2 Axle	8
	40/45/48/53ft 30-60ton	3 Axle	12
	40/45/48/53ft 60-80 ton	4 Axle	16
	40/45/48/53ft 100 ton	5 Axle	20

Dimensions(LxWxH)	6500 -16000mm x 2500 x 1550mm Extender can be added
Axle and Brand	3 axle,13T Leitewei , (2/4 axle,fuhua/BPW to choose)
Tire brand	12r22. 5 295/80r22. 5 13r22. 5 11r22. 5 and other models are available (Chengshan, Chaoyang and other 3-Pack tires)
Axle spacing	1310mm
Tare weight	4tons to 8 tons
Rims	8.5-20, 9.0-20
Brake System	Double line pneumatic braking system with WABCO emergency relay valve
Plate spring	Ten pieces 13mm
Suspension System	Heavy machinery suspension / air suspension
Main Beam	Height 500mm Q345 carbon steel,thickness 10mm(height 530 550 580 Optional)
Side beam	16Channel (20/30 Channe lOptional)
Up and down the wing	Upper16mm,lower18mm Middle web10mm
Container twist lock	4/8/12 Optional
Kingpin	2' or 3.5' interchangeable,JOST brand(50.mm-90mm interchangeable)
Landing Gear	28 Tons ,Two speed manual (Yost or fuhua Can be choose)
Electrical System	1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard
Lights and Reflectors	Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Painting	Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available
Tool Box	One tool box with a set of standard trailer tools
Spare Tyre Carrier	One piece or two pieces
Packing	Polish with wax before shipping
Color	All colors can be customized

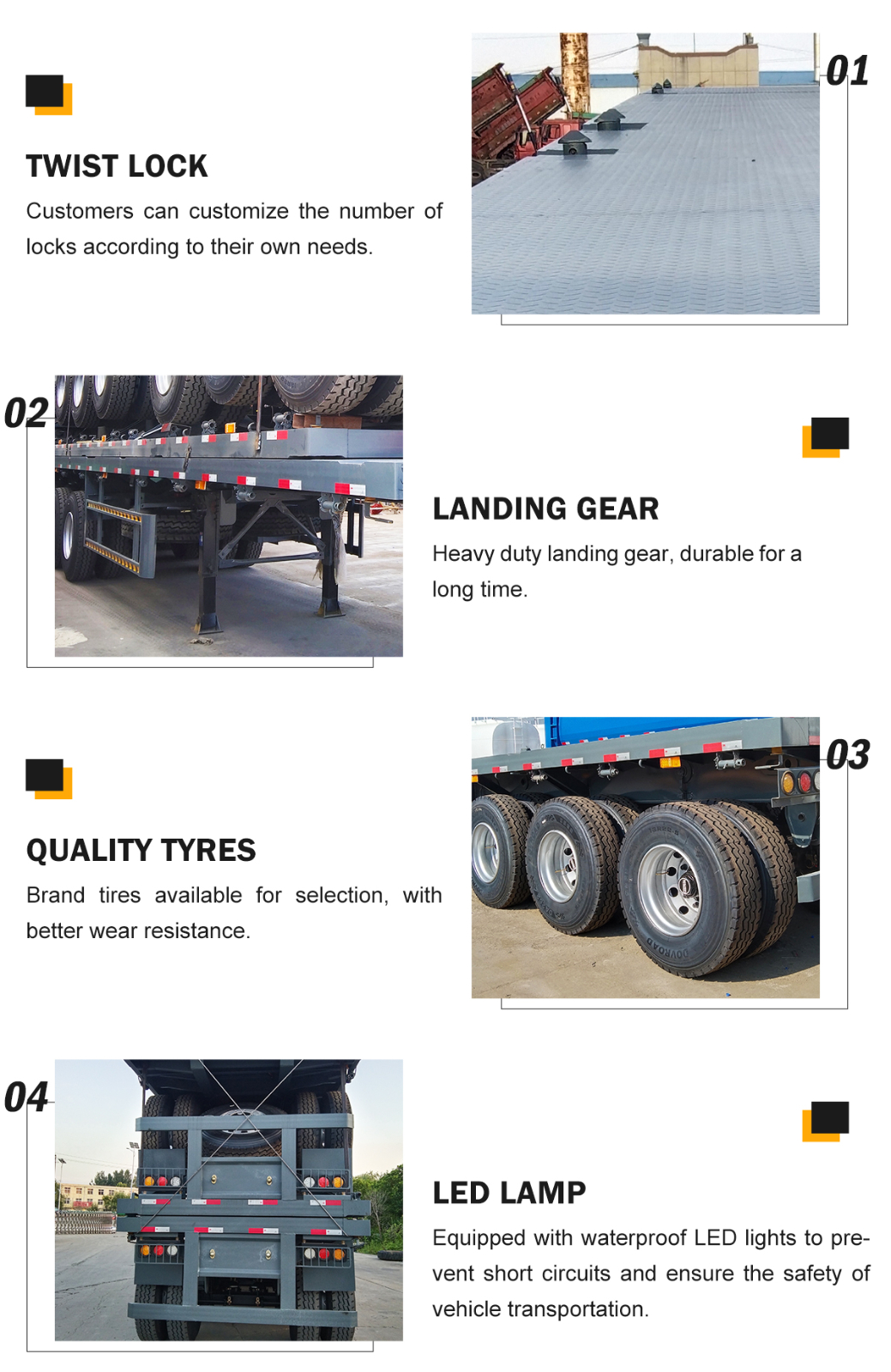

Product Details.jpg

TWIST LOCK

Usually 20 ft is 4 sets locks,40 ft with 12 sets. Customers can also change the number of locks according to their needs.

Landing Gear

Fuwa/JOST landing gear is more than 5 years.The gearbox uses low temperature premium chassis oil and is rated for service from -30°C to 120°C.

Anti-Tire abrasion Suspension

Specially designed anti-Tire abrasion suspension system,Prevent tire offset after loading, maximally avoid tire abrasion.Mean while,Easy to disassemble and maintain.

Brake System

T30/30 Spring brake chamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.

BPW/FUWA/CHENGDA Axle optional.

Integrated Advanced Low-Alloy Axle Beam,Whole Axle Beam No Welding process.Strong Carrying Capacity and high bending Strength.Axle maintenance-free could reach 3 Year/400,000 kilometers.

Featured Tire

Double Coin / LingLong / Michelin / Triangle / Bridgestone and other famous brand for choice.Better Performance in wear resistance.


1.The trailer is waxed before it is packed to prevent seawater from corroding the trailer surface.

2.We will choose the most suitable transportation method for customers and reduce the transportation costs of customers.

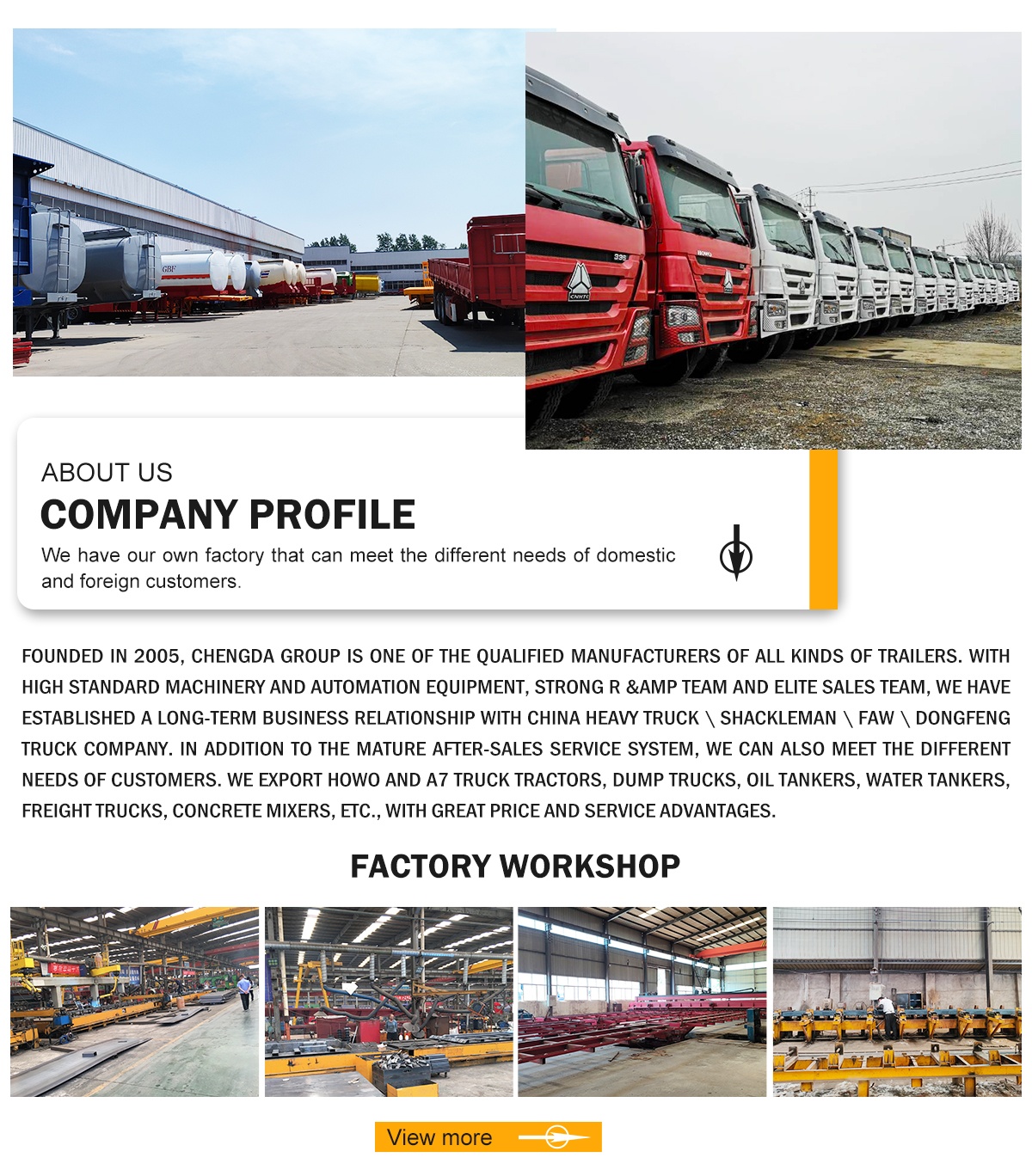

Company Profile.jpg

Our main products are flatbed trailers, low-bed trailers, cargo transport trailers, dump truck trailers, tanker trailers, car transport trailers, animal transport fence trailers and axle parts. They are exported to more than 30 countries in Africa, South America, Southeast Asian countries and the Middle East. country.
